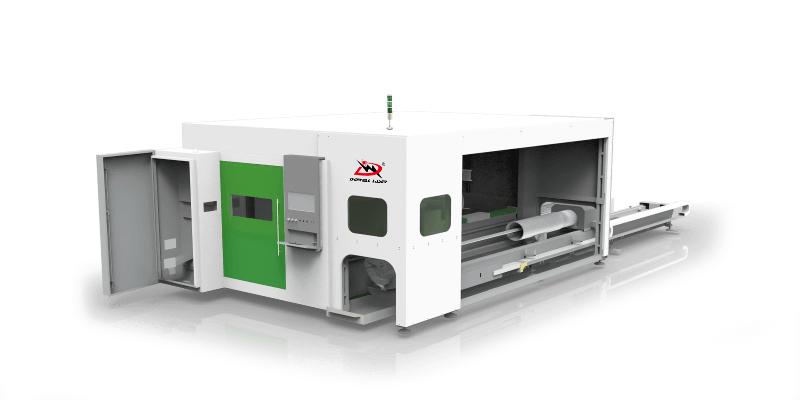

Dowell DW3015TF combines high-speed flat cutting, stable tube profiling, and intelligent operation in one compact machine. It supports round tubes, square tubes, rectangular tubes, and profiles, while delivering clean, high-precision cutting on carbon steel, stainless steel, aluminum, and other metal materials.
With dual functions in one machine, it greatly saves your workshop space, reduces equipment investment, simplifies production flow, and improves overall efficiency—making it the ideal all-in-one solution for modern metal fabrication factories.

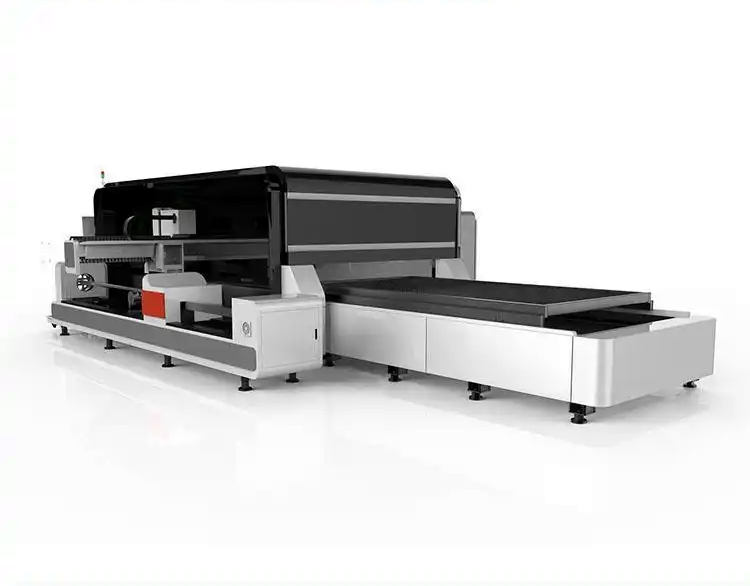

Dowell plate & pipe integrated laser cutter combines flat sheet and tube processing in one machine, greatly reducing your equipment investment and workshop space occupation. It allows fast switching between plate and pipe cutting, improves production flexibility, and eliminates material handling between separate machines. With high precision, stable performance and easy operation, it helps you handle diversified orders efficiently, lower labor costs, and maximize overall productivity for long-term business benefits.
Customize your plate & tube laser cutter with flexible optional configurations and multiple size specifications. Tailored structural designs and functional upgrades adapt to diverse processing sizes and production demands, offering a personalized, cost-effective metal cutting solution.
Large-format working range meets the cutting demands of large sheets and mass production, with strong compatibility for various metal plate processing.
Wide size coverage meets various round pipe, square pipe and profile processing requirements for flexible and diversified production.
Long material feeding design adapts to long pipe processing, reduces secondary cutting procedures and improves overall production efficiency.
Model
DW-3015FT
Working area
3000mm*1500mm
Max. linkage speed
1.0G
Max. acceleration
1.2G
X-axis travel
1510mm
Y-axis travel
3010mm
Z-axis travel
250mm
X and Y axis positioning accuracy
±0.05mm/m
Repeatability of positioning on the X and Y axes
±0.05mm
Maximum positioning speed of X and Y axes
X:74m/min, Y:74m/min
Maximum load capacity of the workbench
1000KG
Positioning accuracy
±0.05mm
Repositioning accuracy
±0.03mm
Rated power voltage and frequency
380V/50Hz
Overall power protection level
IP54
The weight of the machine tool
4911KG
Component Name
Quantity
Brands
Remarks
Laser device
1 set
Raycus-RFL-C3000S
Self-aligning light spot, controlled via network cable; features simple wiring as well as fast, stable, and interference-resistant signal transmission.
Laser Cutting Head
1 set
BOCI BLT310
Integrated structure for simple installation; dual water-cooling design ensures excellent heat dissipation and stable light output.
CNC System
1 set
Bochu FSCUT2000E
Easy installation, helpful commissioning advice, excellent performance, and comprehensive solutions.
Dust Removal Structure
1 set
Dowell Laser
Enhanced zoned cleaning, follow-up dust removal
Bed Structure
1 set
Mortise and Tenon Welding
Second-generation mortise-and-tenon welded structure: optimized for load-bearing capacity and burn resistance
Servo Motor (X/Y/Z axis)
1 set
Inovance
Bus-based drive—working in conjunction with the bus system and motors—enables a truly complete bus-based solution.
Reducer
1 set
Motoreducer
High precision linear slideway(X/Y/Z axis)
3 sets
DTX
H level
High Precision Rack (X/Y axis)
2 sets
Taiwan JINGTE
6 level
Proportional Valves, Solenoid Valves
1 set
Japan SMC
Circuit Main Controller, Electrical Components
1 set
French Schneider
Terminal Block
1 set
Germany Phoenix Contact
Chiller
1 set
Hanli/Tongfei/Teyu
Display Screen
1 set
21.5-inch
High definition
This professional selection manual is specially tailored for metal processing enterprises seeking efficient, cost-effective and versatile cutting equipment, designed to help you easily navigate the selection process and pick the optimal sheet & tube integrated fiber laser cutting machine that perfectly matches your production needs.
Unlike ordinary selection materials, our manual focuses on practicality and marketing value, clearly elaborating on how to select equipment based on your processing scale, material types (including various sheets, round tubes, square tubes, rectangular tubes, etc.), processing precision requirements and budget constraints.
Customer Rating
(234)
(304)
(327)
Common models
DW1530-AC/1540AC/2040AC/2060AC
DW1530-TF/2040-TF/2560-TF
DW3015-TF Pro/4020-TF Pro/6020-TF Pro
Plate cutting range
1500mm*3000mm / 1500mm*4000mm / 2000mm*4000mm / 2000mm*6000mm
1500mm*3000mm / 2000mm*4000mm / 2500mm*6000mm
3000mm*1500mm / 4000mm*2000mm / 6000mm*2000mm
Pipe diameter range (mm)
20-φ220 (standard configuration), 10-φ150 (optional configuration)
φ20-φ220 (standard configuration), φ10-φ150 (optional configuration)
The diameter of the circumscribed circle of the cross section is less than 220 mm.
Max. pipe length (mm)
6000mm
External dimensions
7800mm*3300mm*1800mm / 7800mm*3800mm*1800mm / 8100mm*3800mm*1800mm
8600mm*3700mm*2100mm / 11000mm*4200mm*2100mm / 13500mm*4700mm*2100mm
10900mm*3000mm*2050mm/ 13000mm*360mm*2050mm/ 17500mm*3600mm*2050mm
Potenza del laser
3000W~6000W~12000W
Max. cutting speed (m/min)
60m/min
100m/min
140m/min
Positioning accuracy
±0.03mm/1000mm
Equipment power
20kw/20kw/23kw/23kw
20kw/23kw/23kw
20kw/23kw/23kw
Total weight
4500kg/5500kg/6000kg/700kg
9000kg/10500kg/12000kg
11500kg/13000kg/15000kg
Power supply
3P 380V/50Hz/60Hz
Working environment
Temperature: 0~45°C Humidity: ≤80% (non-condensing)
Note: It details the core parameters, functional advantages and application scenarios of different models, helping you avoid wrong selections, reduce investment risks and maximize the return on equipment investment. Whether you are a small and medium-sized enterprise looking to expand production capacity or a large manufacturer aiming to upgrade the production line, this selection manual will provide you with professional guidance – from understanding the key indicators of sheet & tube integrated cutting equipment to matching the most suitable model for your business, every link is designed to help you improve processing efficiency, reduce production costs and enhance core competitiveness in the metal cutting industry. With this manual, you can easily select a high-performance, stable and cost-effective sheet & tube integrated fiber laser cutting machine, laying a solid foundation for your efficient and high-quality production.

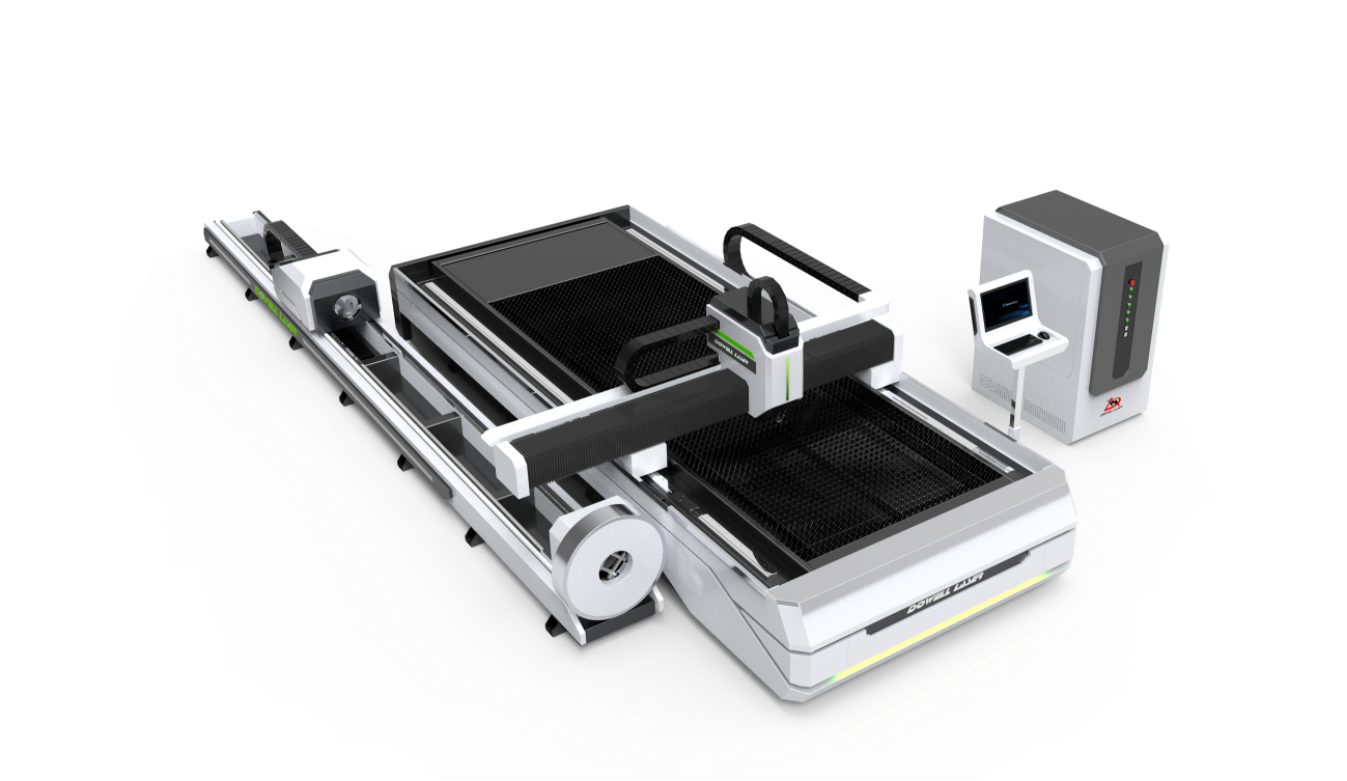

Integrating both sheet and tube processing, this system leverages advanced automation and integration technologies to minimize its footprint, thereby saving valuable workshop space. It offers comprehensive, all-around cutting capabilities—reducing costs while significantly boosting efficiency.
The cutting head performs off-position cutting to process the tail end of the tube, thereby maximizing material utilization.
Rapid slag and smoke removal, simultaneous heat application for temperature stabilization, suppression of thermal interference, clean and efficient operation.

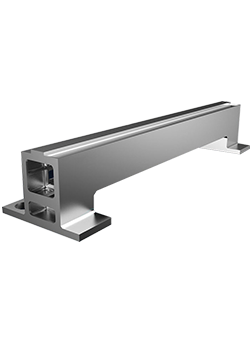

Constructed from high-quality carbon steel with a low-center-of-gravity, welded structure, and featuring an integrated expansion joint design; resistant to heat and deformation, extending service life by 20 times.
The machine bed features an integrated horizontal datum; this datum is utilized for leveling throughout the entire process—from machining to final assembly—thereby ensuring consistent and identical precision both at the factory and on-site.
Expanded range of multi-format laser cutting machines—choose freely to suit your specific requirements.
To meet diverse and complex production requirements, Dowell sheet & tube integrated laser cutting machine supports a full range of optional functions and customizable configurations.
You can flexibly upgrade and expand the equipment according to material types, processing thickness, production efficiency and automation needs, making the machine more powerful and cost-effective.
All series are equipped with premium laser cutting heads as standard. Integrated multiple core protection and intelligent functions, stable performance out of the box, no extra upgrade cost, to deliver long-lasting and high-efficiency metal cutting.

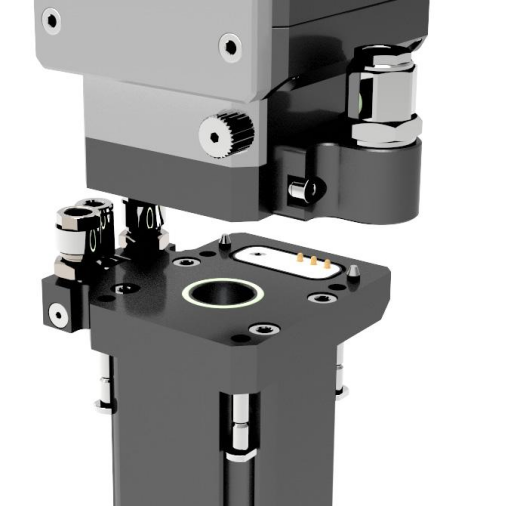

Equipped with sensor-based head collision protection structure. The integrated anti-collision design effectively safeguards the laser cutting head, lowers failure risks and greatly reduces long-term maintenance costs.

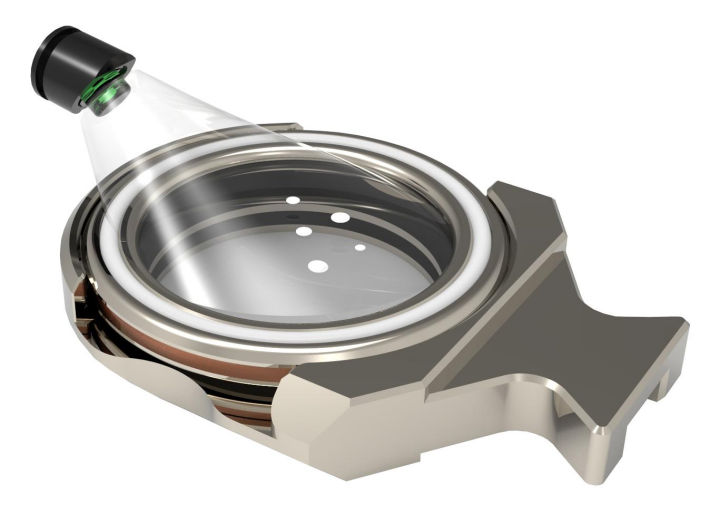

Real-time temperature detection for the protective lens during operation. It triggers automatic alarm and shutdown once contamination occurs, effectively protecting core components and extending service life.

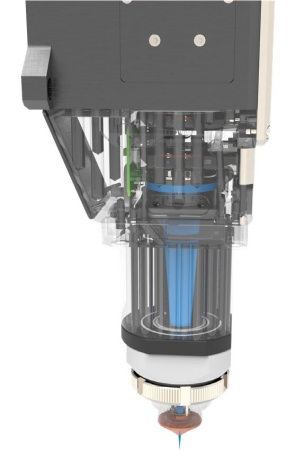

Multiple built-in sensors enable real-time closed-loop intelligent monitoring of the laser head. It supports fast fault diagnosis and early risk warning to ensure stable machine operation and reduce unexpected downtime.

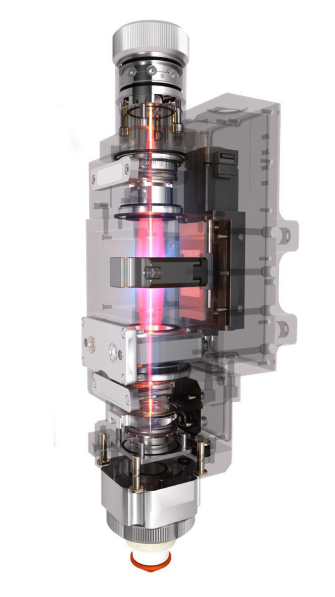

Built-in collimate focusing design shortens laser focusing waiting time. It ensures continuous, smooth cutting performance and greatly improves overall processing efficiency for long-term production.

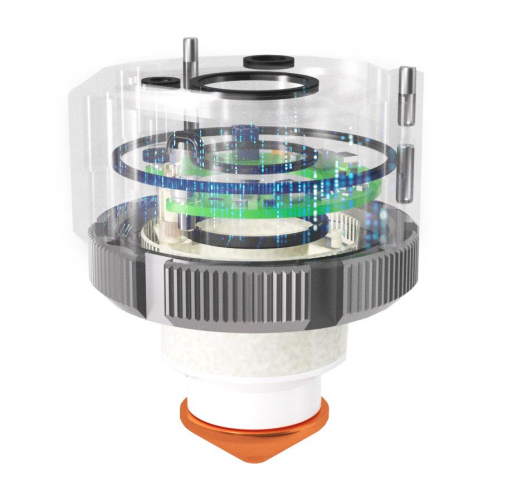

Featuring an integrated capacitive amplification sensor for highly precise and stable automatic height adjustment. It keeps the laser head in optimal position to ensure consistent cutting quality.

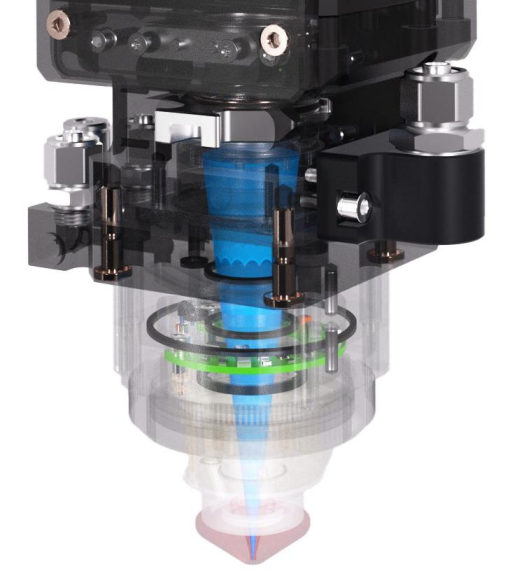

Real-time gas flow and pressure monitoring during cutting. It avoids poor section quality caused by unstable air pressure, ensuring consistent and high-precision cutting results.

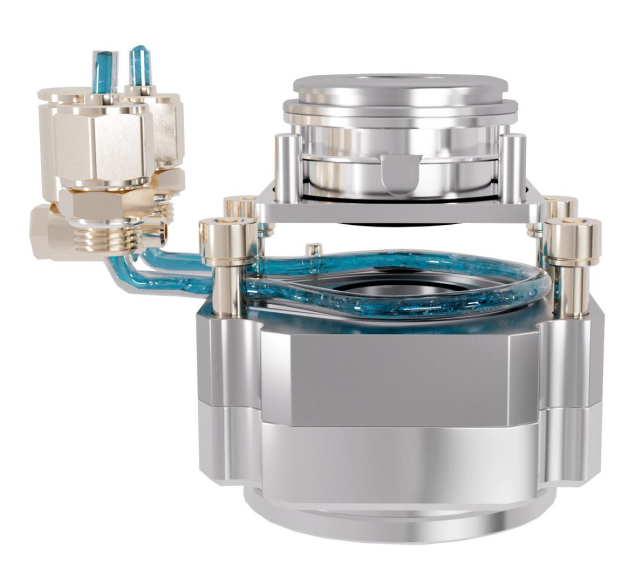

Adopts professional water cooling structure for the laser cutting head. It effectively dissipates continuous working heat, maintains stable operating temperature, and prolongs the service life of core cutting components.

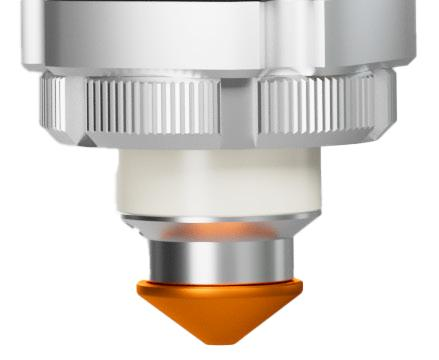

Built-in cooling gas channel inside the laser cutting head realizes real-time nozzle cooling. It effectively stabilizes working temperature, prevents overheating damage, and maintains consistent high-quality cutting results.

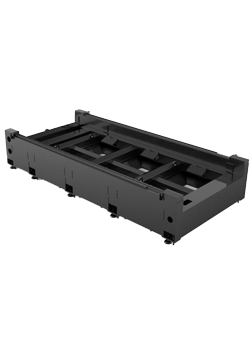

BThe bed body adopts an integral welded structure, which is subjected to rough machining after annealing to eliminate internal stress, and then precision machined after secondary vibration aging treatment, effectively solving the stress caused by welding and machining, thereby greatly improving the stability of the machine bed body

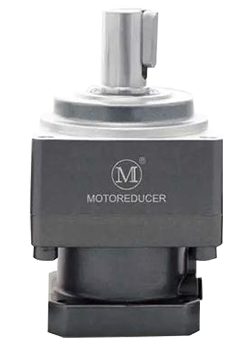

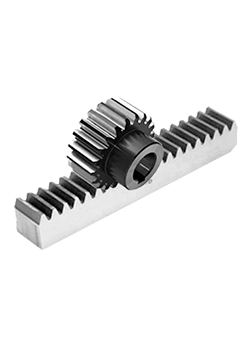

Both X/Y/Z axes use Inovance servo motors, equipped with high rigidity and precision French imported Morelli reducers, high-precision Taiwan imported YYC gear racks, high-precision Taiwan imported HIWIN linear guides, and other efficient transmission mechanisms, effectively ensuring the accuracy of transmission.
It is measured using a lightweight casting structure, which is subjected to rough machining after annealing to eliminate internal stress, and then precision machined after secondary vibration aging treatment, effectively solving the stress caused by casting and machining, thereby greatly improving the stability of the machine tool.

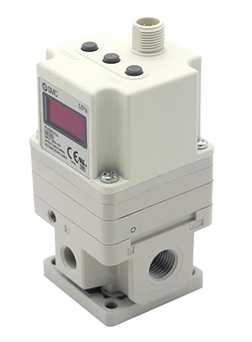

The cutting gas paths are oxygen, air, and nitrogen, which can be freely switched between gases. The gas path components are selected from the SMC brand, imported from Japan, for high precision and good pressure stability.
The system reads the distance signal detected by the Z-axis capacitance sensor, thereby accurately controlling the height between the cutting head and the cutting table, ensuring that the cutting quality is not affected by the unevenness of the cutting material.
Upgrade your metal fabrication with the Dowell all-in-one plate and tube laser cutting machine. Combine high-precision plate cutting and efficient tube processing in one compact unit. Contact our team today to get a customized solution, detailed quotation, and factory pricing.
