Delivers burr-free, high-accuracy cuts

Four-chuck Heavy-duty Tube Laser Cutting Machine

In the field of heavy-duty pipe processing, traditional single-process models often suffer from efficiency constraints due to waiting times during loading and unloading. Addressing this common industry bottleneck, Dowell Laser has officially launched a side-mounted four-chuck laser pipe cutting machine. This product utilizes a "dual-process parallel" intelligent processing logic to revolutionize traditional production processes, improving the continuity and time utilization of processing steps.

Get An Instant Quote

Watch Video

Creative Agency

We are crazy digital agency for branding and designing

Lorem ipsum dolor sit amet, consectetur adipisicing elit. Eius eligendi fugiat labore libero molestias provident quae quaerat quis! Aspernatur at enim excepturi facere in non reiciendis soluta totam, voluptas voluptate!

square image6.jpg

introduzione

Le macchine per il taglio laser di tubi DOWELL super pesanti sono in grado di lavorare tubi di grande diametro, da pochi millimetri a centinaia di millimetri. Non solo è in grado di gestire tubi di dimensioni tradizionali, ma può anche soddisfare esigenze speciali di grandi dimensioni e soddisfare le diverse esigenze di diversi settori per quanto riguarda le dimensioni dei tubi.

La macchina da taglio laser per tubi per carichi pesanti è adatta per il taglio di tubi in metallo pesante, inclusi tubi tondi, tubi quadrati, tubi rettangolari, travi a I, tubi a forma di U e altri tubi di diverse forme.

Può tagliare tubi pesanti con diametri fino a 500 mm, lunghezze fino a 12 m e pesi fino a 1600 kg. La potenza del laser è opzionale da 1000-12000 W. I dispositivi di taglio inclinato, sospensione laterale e carico e scarico possono essere personalizzati.

Features and Benefits

 The 4-chuck clamping system ensures firm fixing of heavy, extra-long pipes, avoiding swinging and deformation during cutting; combined with high-precision laser cutting technology, it achieves burr-free, high-accuracy cuts. It supports continuous heavy-load operation, reduces labor costs, and adapts to various thick-walled, large-diameter pipes, helping you gain an edge in heavy pipe processing.

frame 2147224603.png
frame 2147224672.png

High Precision and High Quality

Precise cutting is achieved, and accurate cutting is carried out according to the predetermined contour, ensuring the accuracy and quality of the pipe. It is commonly used in the field of steel structures.

frame 2147224672 1.png

High Production Efficiency

Fast and stable production capacity. Complete cutting of multiple parts at one time greatly improves production efficiency. It is suitable for enterprises that produce steel pipes in batches and improves overall production efficiency and manufacturing capabilities.

frame 2147224672 2.png
Wide Adaptability

Can handle pipes of various shapes and materials, including round, square, and special-shaped pipes. Pipes of different shapes and sizes have wide adaptability in the steel structure industry.

frame 2147224672 3.png

Automated Production Integration

Automated pipe processing, transportation, and storage can be achieved through the loading, discharging, and stacking of equipment used in conjunction with the pipe-cutting machine, improving the efficiency and accuracy of the entire production process.

frame 2147224672 4.png

Large-scale Production Capabilities

Can handle high-volume pipe cutting tasks. For projects that require large-scale production, continuous cutting operations can be completed efficiently and production efficiency can be improved.

Technical Parameters and Specification

Check the detailed technical parameters of the Dowell 4-chuck heavy-duty pipe laser cutting machine — engineered for stable clamping, high-precision cutting, and heavy-load operation. We can customize all parameters to meet your specific processing requirements for extra-long, large-diameter, and thick-walled pipes, helping you boost production efficiency and competitiveness.

  • Item.

  • Parameter

  • Maximum pipe length

  • 6000m/9000m/12500mm

  • Maximum automatic blanking length

  • 9000mm/12000 mm

  • Round tube processing range

  • Φ20-560mm

  • Square and rectangular tube processing range

  • Φ20-560mm

  • I-beam steel processing range

  • 10#-45# I-beam steel

  • Repetitive machine tool positioning precision

  • ±0.1mm

  • Machine tool positioning precision

  • ±0.1mm/m

  • Maximum traveling speed

  • 60m/min

  • Maximum idle speed

  • 40rod/min

  • Maximum acceleration speed

  • 1G

  • Net weight

  • Above 20000kg

  • Maximum single tube weight

  • 83.3 kg/m(maximum 1500 kg/tube)

  • Tailing length

  • 0mm(Achieve this under reasonable process layout.)

  • Overall dimension(L*W*H)

  • Above 26000*4500*3500mm

  • Number of phases

  • 3P, Voltage fluctuation <10%

  • Rated voltage of power source

  • 380V

  • Frequency

  • 50Hz

  • Protection rating of main power

  • IP54

    • Key Configuration Overview

    Dowell Laser 4‑chuck heavy‑duty laser pipe cutting machine comes with high‑end standard configurations: high‑rigidity four‑chuck linkage, high‑power fiber laser, intelligent CNC system, automatic feeding, fully enclosed safety cover, dust and fume extraction system, full safety interlocks and emergency stop. Designed for heavy‑wall and large‑diameter pipes, it delivers reliable performance, high precision and long service life.

    man image 1.png

  • Number

  • Component Name

  • Brands

  • 1.

  • Fiber Laser Source

  • Max / Raycus

  • 2.

  • Fiber Laser Cutting Head

  • Ospri

  • 3.

  • CNC Control System

  • Bochu

  • 4.

  • Nesting Software

  • Bochu

  • 5.

  • Pneumatic Chuck (Full-Stroke)

  • Lingman

  • 6.

  • Y-Axis Gear & Rack (Helical)

  • Faston / Jinte

  • 7.

  • Y/Z-Axis Ball Screw

  • Taiwan TBI

  • 8.

  • X-Axis Linear Guide

  • LDA

  • 8.

  • X/Y/Z-Axis Servo Motors & Drivers

  • Inovance

  • 9.

  • Z-Axis Servo Motor & Driver

  • Inovance

  • 10.

  • Reducer

  • Faston / Motovario

  • 11.

  • Pneumatic Components

  • SNS / Chinese Brand

  • 12.

  • Electric Proportional Valve

  • SNS

  • 13.

  • Electrical Components

  • France Schneider Electric

  • 14.

  • Machine Tool Accessories

  • Dowell Laser

  • 15.

  • Machine Bed

  • Dowell Laser

  • 16.

  • Semi-Automatic Material Rack (Optional)

  • Dowell Laser

  • 17.

  • Follow-up Unloading System (Optional)

  • Dowell Laser

  • 18.

  • Water Chiller Unit

  • S&A / Hanli

    • Extra-long Pipe Laser Cutting Solution | Stable & Efficient

    Dowell extra-long pipe laser cutting system is specially designed for 9m/12m/15m ultra-long metal pipes processing. Equipped with heavy-duty three-chuck / four-chuck structure, full-stroke support and automatic loading-unloading, it effectively prevents pipe swinging and deformation, realizing full-length high-precision cutting without blind spots.

    It supports round pipes, square pipes, channel steel, H-beams and other profiles, with clean cuts, bevel cutting available and zero-tail cutting to save materials. Ideal for steel structure, bridge, oil & gas, shipbuilding and construction machinery industries, greatly improving production efficiency and reducing labor costs.
    heavy duty laser tube cutting machine 1

    Equipped with a follow-up support device

    Equipped with a follow-up material support, the lifting height is adjusted in real time to prevent the pipe from swinging and sagging, while ensuring cutting accuracy.
    heavy duty laser tube cutting machine 2

    High-speed static cutting

    For densely cut shapes on heavy-duty pipes, processing can be completed without moving the heavy-duty pipe, which can greatly improve the cutting accuracy of heavy-duty pipes and reduce power consumption.
    heavy duty laser tube cutting machine 3

    Optional Beveling Function

    An optional laser pipe-cutting machine with beveling function is available, enabling ±45° bevel cuts and accurate bevel forming for various metal pipes, including round, square, rectangular, and special-shaped tubes.
    heavy duty laser tube cutting machine 4

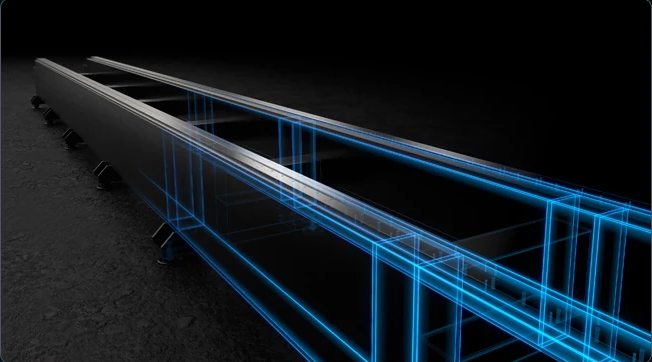

    All-New Dual-Keel Bed Structure

    Utilizing a horizontal bed configuration, this design features a proprietary tenon-and-groove dual-keel structure; its low center of gravity and high load-bearing capacity ensure superior stability when cutting heavy-duty pipes.
    heavy duty laser tube cutting machine 5

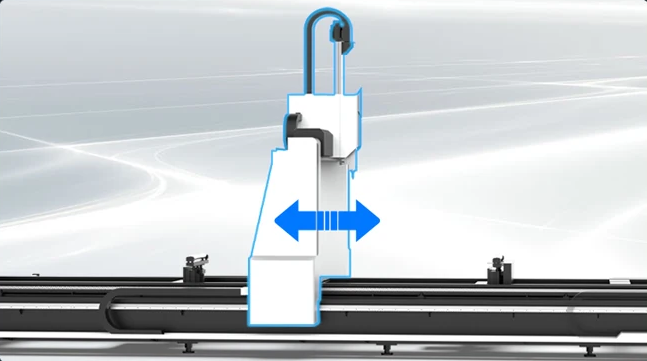

    Movable Gantry Structure

    The flexible, movable gantry ensures smooth and precise operation throughout the entire processing stroke, effectively supporting extra-long metal tubes and profiles with a maximum processing length of up to 12 meters.
    heavy duty laser tube cutting machine 6

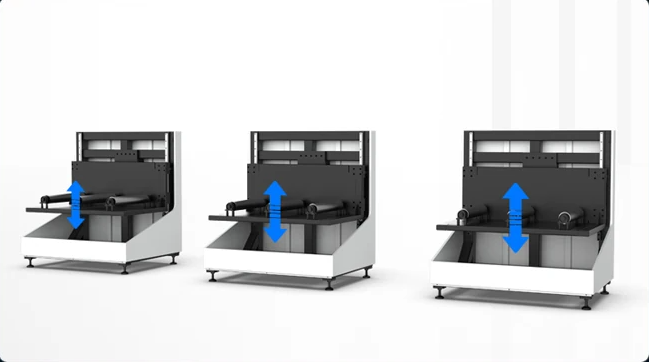

    Follow-up Unloading: Safe and Convenient

    Equipped with an intelligent follow-up unloading device that moves synchronously with the main machine, the entire unloading operation achieves higher safety and greater convenience.

    Patented Servo Motor Heavy-duty Tube Material Support

    Dowell Laser’s independently developed graded servo material support system features a two-stage floating material support device that constantly floats up and down to support the material as its rotation radius changes, ensuring cutting accuracy.

    four chuck pipe cutting machine material support frame 1
    Safety Protection Limit Devices

    Equipped with safety protection and limit devices to prevent material from throwing or colliding, it is suitable for 24-hour continuous operation and reduces operational risks. It is compatible with various materials such as sheets and tubes, and can be linked with production line units such as uncoilers, levelers, and feeders.

    four chuck pipe cutting machine material support frame 2
    Heavy Duty Tube Material Rack

    Driven by a servo motor, it moves synchronously with the cutting head, lifting the lower surface of the sheet/pipe in real time to prevent long materials from sagging and thin plates from being indented. It is especially suitable for processing materials longer than 3 meters, thick plates (≤20mm), and irregularly shaped parts.

    four chuck pipe cutting machine material support frame 3
    High-strength Chain-driven Feeding Structure

    The high-strength chain-driven feeding support structure provides real-time support for sheet metal/pipes, solving deformation and misalignment issues in the processing of long, thin, and heavy materials, thereby improving processing efficiency and finished product precision.

    Configurazione della macchina per il taglio laser di tubi per carichi pesanti

    Mandrino per carichi pesanti

    Può adattarsi a molti tipi diversi di materiali, come acciaio al carbonio, acciaio inossidabile, lega di alluminio, ecc. L'ambito di applicazione può soddisfare le esigenze di diversi progetti e clienti.

    Mandrino per carichi pesanti
    Sistema di taglio laser tubi

    Sistema di taglio tubi semplice e flessibile

    Il sistema di taglio laser dei tubi è solitamente dotato di un'interfaccia di disegno e matematica e il funzionamento è semplice e flessibile. Attraverso programmi preimpostati, è possibile realizzare il taglio di varie forme complesse per soddisfare le esigenze di personalizzazione personalizzate dei diversi clienti. Che si tratti di geometrie convenzionali o convenzionali o di tubi dalla forma speciale, possono essere lavorati con facilità.

    Tecnologia di taglio senza contatto

    La tecnologia di taglio senza contatto consuma utensili da taglio aggiuntivi, riducendo il consumo di energia e lo spreco di materiale. Non produce perdite né acque reflue, il che è in linea con il concetto di produzione verde nell'industria manifatturiera e contribuisce allo sviluppo sostenibile.

    taglio laser per tubi
    Taglio inclinato di tubi metallici

    Utilizzando la tecnologia laser avanzata

    Ottieni una precisione di taglio estremamente elevata. Che si tratti di taglio piano o tridimensionale, la precisione raggiunge il livello submillimetrico. Il taglio ad alta precisione garantisce l'accuratezza dimensionale dei tubi dopo la lavorazione e migliora la qualità e la consistenza del prodotto.

    progettazione del taglio laser dei tubi

    Montaggio laterale personalizzabile, funzione di taglio inclinato tridimensionale a cinque assi. È possibile aggiungere vari accessori e funzioni in base alle esigenze dell'utente, come caricamento automatico, sistema di scarico, taglio inclinato, ecc. Il design personalizzato rende l'attrezzatura più flessibile e adatta a diversi scenari applicativi e requisiti di processo, soddisfacendo le esigenze dei clienti per lavori diversificati.

    montaggio laterale
    Macchina per il taglio laser di tubi personalizzata

    Supporto tecnico e formazione:

    Le macchine per il taglio laser di tubi per carichi pesanti includono formazione sull'installazione dell'attrezzatura, guida operativa, manutenzione e altri aspetti per garantire il normale funzionamento e il massimo utilizzo dell'attrezzatura.

    Macchina per il taglio laser di tubi montata lateralmente

    Aumentare la competitività:

    Le macchine per il taglio laser di tubi per carichi pesanti possono migliorare la competitività delle imprese del settore. Può fornire una lavorazione di tubi flessibile, di alta qualità e ad alta efficienza, che può soddisfare meglio le esigenze dei clienti, ridurre i costi di produzione, migliorare l'efficienza produttiva e ottenere un vantaggio nella concorrenza sul mercato.

    Hotspot Line Style
    Product Showcase

    Enable Hotspot image of your product and design with line style.

    2127 Gambler Lane

    Material: Carbon

    273 Bloomfield Way

    Material: Carbon

    3566 Cambridge Drive

    Material: Carbon

    4858 Sycamore Circle

    Material: Carbon

    Assisted with Loading and Unloading

    Safe and Flexible

    High-speed automatic loading and unloading allows for greater flexibility in the quantity and type of materials being loaded and unloaded, making processing more convenient.

    Reduces the frequency of hoisting, ensures processing safety, increases production efficiency, and enables large-scale automated production of heavy-duty pipes.

    Dual-zone Follow-up

    High-efficiency Assistance

    Breaking through the limitations of traditional four-chuck loading and unloading, the loading zone features follow-up roller support for centering and heavy tube feeding.

    The unloading zone features follow-up pallet support, ensuring flexible and stable unloading of workpieces of different lengths. A high-power follow-up servo motor, far exceeding its class, provides stress-free support for heavy tubes.

    Beveling Cutting

    One-Step Forming

    High-precision beveling cutting yields high-quality workpieces.

    Subsequent welding operations can begin immediately, supporting V/A/K/Y/X type beveling, eliminating the need for secondary trimming and reducing time and labor costs.

    Weld Seam Recognition

    Flexible Response

    Equipped with a high-sensitivity ultra-high-definition camera and AI self-learning capabilities, it can accurately identify weld seam locations and achieve cutting and avoidance.

    Top-tier Configuration

    Flagship Performance

    The entire machine features a high-strength steel heavy-duty side-mounted bed and an upgraded triangular three-dimensional transmission structure;

    It is equipped with a high-precision pneumatic chuck, suppo that supportsrting a maximum power of 30,000W.

    Top-tier Configuration

    Flagship Performance

    The entire machine features a high-strength steel heavy-duty side-mounted bed and an upgraded triangular three-dimensional transmission structure;

    It is equipped with a high-precision pneumatic chuck, suppo that supportsrting a maximum power of 30,000W.
