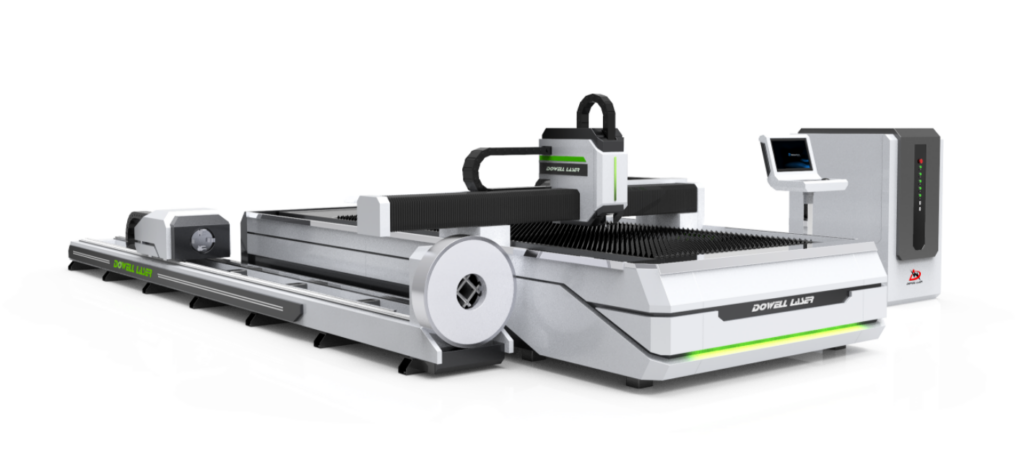

Integrated Sheet & Tube Laser Cutting Machine
Dowell DW3015TF combines high-speed flat cutting, stable tube profiling, and intelligent operation in one compact machine. It supports round tubes, square tubes, rectangular tubes, and profiles, while delivering clean, high-precision cutting on carbon steel, stainless steel, aluminum, and other metal materials.
With dual functions in one machine, it greatly saves your workshop space, reduces equipment investment, simplifies production flow, and improves overall efficiency—making it the ideal all-in-one solution for modern metal fabrication factories.
plate & pipe integrated
Why Choose the Plate & Pipe Integrated Laser Cutting Machine
Dowell plate & pipe integrated laser cutter combines flat sheet and tube processing in one machine, greatly reducing your equipment investment and workshop space occupation. It allows fast switching between plate and pipe cutting, improves production flexibility, and eliminates material handling between separate machines. With high precision, stable performance and easy operation, it helps you handle diversified orders efficiently, lower labor costs, and maximize overall productivity for long-term business benefits.
Selection Guide
This professional selection manual is specially tailored for metal processing enterprises seeking efficient, cost-effective and versatile cutting equipment, designed to help you easily navigate the selection process and pick the optimal sheet & tube integrated fiber laser cutting machine that perfectly matches your production needs.
Unlike ordinary selection materials, our manual focuses on practicality and marketing value, clearly elaborating on how to select equipment based on your processing scale, material types (including various sheets, round tubes, square tubes, rectangular tubes, etc.), processing precision requirements and budget constraints.
Customer Rating
(234)
(304)
(327)
Common models
DW1530-AC/1540AC/2040AC/2060AC
DW1530-TF/2040-TF/2560-TF
DW3015-TF Pro/4020-TF Pro/6020-TF Pro
Plate cutting range
1500mm*3000mm / 1500mm*4000mm / 2000mm*4000mm / 2000mm*6000mm
1500mm*3000mm / 2000mm*4000mm / 2500mm*6000mm
3000mm*1500mm / 4000mm*2000mm / 6000mm*2000mm
Pipe diameter range (mm)
20-φ220 (standard configuration), 10-φ150 (optional configuration)
φ20-φ220 (standard configuration), φ10-φ150 (optional configuration)
The diameter of the circumscribed circle of the cross section is less than 220 mm.
Max. pipe length (mm)
6000mm
External dimensions
7800mm*3300mm*1800mm / 7800mm*3800mm*1800mm / 8100mm*3800mm*1800mm
8600mm*3700mm*2100mm / 11000mm*4200mm*2100mm / 13500mm*4700mm*2100mm
10900mm*3000mm*2050mm/ 13000mm*360mm*2050mm/ 17500mm*3600mm*2050mm
Мощность лазера
3000W~6000W~12000W
Max. cutting speed (m/min)
60m/min
100m/min
140m/min
Positioning accuracy
±0.03mm/1000mm
Equipment power
20kw/20kw/23kw/23kw
20kw/23kw/23kw
20kw/23kw/23kw
Total weight
4500kg/5500kg/6000kg/700kg
9000kg/10500kg/12000kg
11500kg/13000kg/15000kg
Power supply
3P 380V/50Hz/60Hz
Working environment
Temperature: 0~45°C Humidity: ≤80% (non-condensing)
Note: It details the core parameters, functional advantages and application scenarios of different models, helping you avoid wrong selections, reduce investment risks and maximize the return on equipment investment. Whether you are a small and medium-sized enterprise looking to expand production capacity or a large manufacturer aiming to upgrade the production line, this selection manual will provide you with professional guidance – from understanding the key indicators of sheet & tube integrated cutting equipment to matching the most suitable model for your business, every link is designed to help you improve processing efficiency, reduce production costs and enhance core competitiveness in the metal cutting industry. With this manual, you can easily select a high-performance, stable and cost-effective sheet & tube integrated fiber laser cutting machine, laying a solid foundation for your efficient and high-quality production.
Технические параметры
- Марка: Дюбельный Лазер
- Power: 1000w -60kw
- Рабочая ширина (мм): 3015/4025/6025/8025/12025
- Maximum speed :120m/min
- Maximum accelerated speed:1.2G
- Reposition accuracy: ±0.02mm/1000mm
- Graphic format supported :AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
- Настраиваемый дизайн
- Working environment Temp:0-40℃,humidity:≤80%, No condensation
- Position accuracy: ±0.03mm/1000mm
- Место производства: Китай
- Настраиваемый сверхбольшой формат
Видео Лазерной Резки
Конфигурация
fiber Laser Source
Raycus/Max/IPG, multiple choice Different brands, different laser power are available. The higher power, the thicker cutting thickness.
Professionl fiber laser cutting head
Fiber optic cutting head with Swiss technology, professional QBH fiber optic output interface, high sealing, precise focal length calibration. The cutting gap can be as short as 0.1mm, improving cutting performance and reducing gas consumption
Cypcut Control System
laser cutting machine bed
High stability bed, after high temperature annealing treatment, high effectiveness and strong stability
Servo motor
S&A Water Chiller
With excellent quality and leading research retrength, S&A has become a leading enterprise in the China industrial refrigeration industry.
Вопросы и ответы
How to choose a suitable plate and tube laser cutting machine?
When choosing, you need to consider factors such as the thickness of the cutting material, cutting accuracy requirements, cutting speed, floor space, budget, etc.
What are the maintenance of the tube and plate laser cutting machine?
Regularly clean the cutting head, replace consumables, check the cooling system, lubricate the transmission parts, etc.
How do dual-use sheet and tube laser cutting machines perform compared to specialized machines
| Аспект | Dual-use Sheet and Tube Laser Cutting Machines |
|---|---|
| Преимущества | • Versatility (cuts both sheet and tube) • Space-efficient • Cost-effective • Streamlined workflow |
| Недостатки | • Potential power limitations • More complex mechanics • Material handling challenges • Possible speed trade-offs • Potential size restrictions |
| Performance | • Comparable accuracy to specialized machines • High flexibility for varied jobs • Good software integration |
| Best suited for | Shops requiring versatility in cutting both sheet and tube |
What types of shapes can tube lasers cut?
Tube lasers can cut round, square, rectangular, and oval tubes, as well as angles, channels, beams, and custom extrusions
Advantages of the tube plate integrated laser cutting machine compared with traditional cutting methods?
Compared with traditional cutting methods, laser cutting has higher efficiency, precision and flexibility, can process more complex parts, and reduces labor costs and material waste.
What are common problems encountered with tube laser cutting machines?
Common issues include rough cuts, beam instability, nozzle clogging, and material handling problems. Regular maintenance and proper machine settings can help mitigate these issues
How does the cutting process work in a tube laser cutting machine?
The machine uses a high-powered laser beam focused on the tube’s surface, melting or vaporizing the material to create precise cuts. The process is guided by a computer-controlled motion system
What after-sales services should be considered when purchasing a plate and tube laser cutting machine?
The supplier’s after-sales service capabilities should be considered, including installation and commissioning, training, maintenance, spare parts supply, etc.
“At VoltACar, we’re rethinking transportation by blending smart technology, sustainability, and human-centered design to make electric driving intuitive and accessible.”
John Sans, Founder & CEO
Dual-Purpose Functionality
Versatile and Flexible
Integrating both sheet and tube processing, this system leverages advanced automation and integration technologies to minimize its footprint, thereby saving valuable workshop space. It offers comprehensive, all-around cutting capabilities—reducing costs while significantly boosting efficiency.
Off-Position Tail Cutting
Eliminate Material Waste
The cutting head performs off-position cutting to process the tail end of the tube, thereby maximizing material utilization.
Zoned Dust Removal
Cleaner & Safer Cutting
Rapid slag and smoke removal, simultaneous heat application for temperature stabilization, suppression of thermal interference, clean and efficient operation.
Ultra-Stable, Precision-Engineered
Machine Bed
Constructed from high-quality carbon steel with a low-center-of-gravity, welded structure, and featuring an integrated expansion joint design; resistant to heat and deformation, extending service life by 20 times.
Eliminating Measurement Errors
Reference Homologous Leveling
The machine bed features an integrated horizontal datum; this datum is utilized for leveling throughout the entire process—from machining to final assembly—thereby ensuring consistent and identical precision both at the factory and on-site.
Multiple Formats
Select as Needed
Expanded range of multi-format laser cutting machines—choose freely to suit your specific requirements.
Optional Functions & Custom Configurations
To meet diverse and complex production requirements, Dowell sheet & tube integrated laser cutting machine supports a full range of optional functions and customizable configurations.
You can flexibly upgrade and expand the equipment according to material types, processing thickness, production efficiency and automation needs, making the machine more powerful and cost-effective.
Integrated Back Gauge Positioning
Slag-Resistant Tabletop
Concealed Quick-Release Cabling
