Dowell’s automatic coil-fed laser blanking line integrates uncoiling, leveling, feeding, laser cutting, and blanking into a single continuous process. It supports continuous production, maximizes material utilization, reduces manual handling and labor costs, and delivers a stable, high-efficiency, intelligent solution for mass sheet-metal manufacturing.
Are you looking for:
Significantly Improve Material Utilization

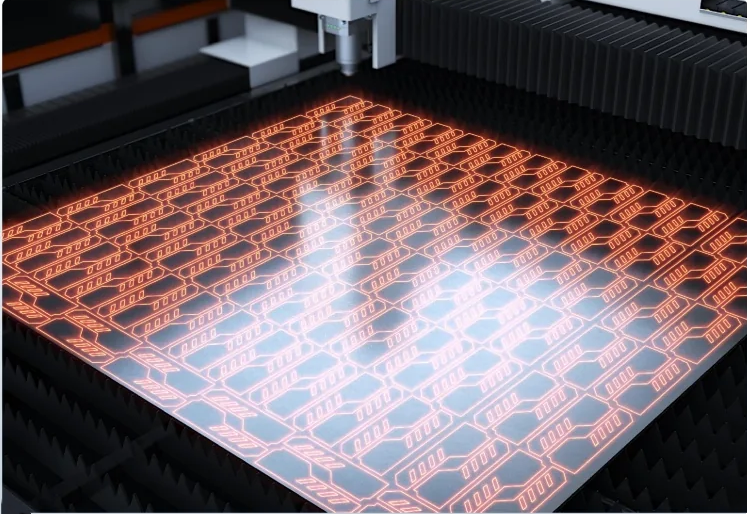

By using automated nesting software, free layout and tight nesting can be achieved, minimizing waste and increasing material utilization by 5-15% compared to traditional methods.
Wide Range Processing
It can easily cut extremely complex shapes, tiny internal holes, sharp corners, narrow slits, micro-connection points, etc., with high geometric freedom and no hardness limitations.
Moldless Flexible Production
Product switching/changes can be achieved instantly simply by calling/modifying different cutting programs, with extremely fast response speed.
Shorten the Production Cycle
It integrates processes such as uncoiling, leveling, cutting, sorting, and stacking, achieving highly automated continuous production, reducing the need for secondary processing.

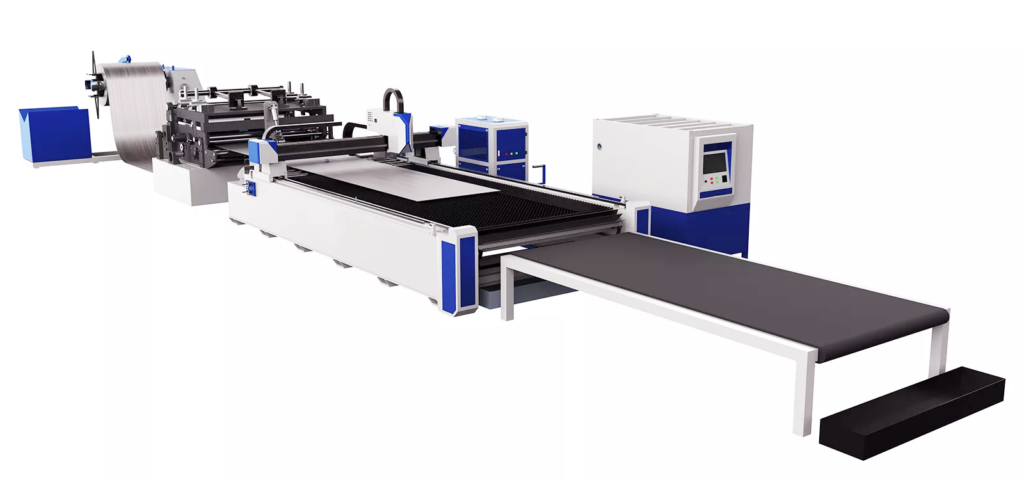

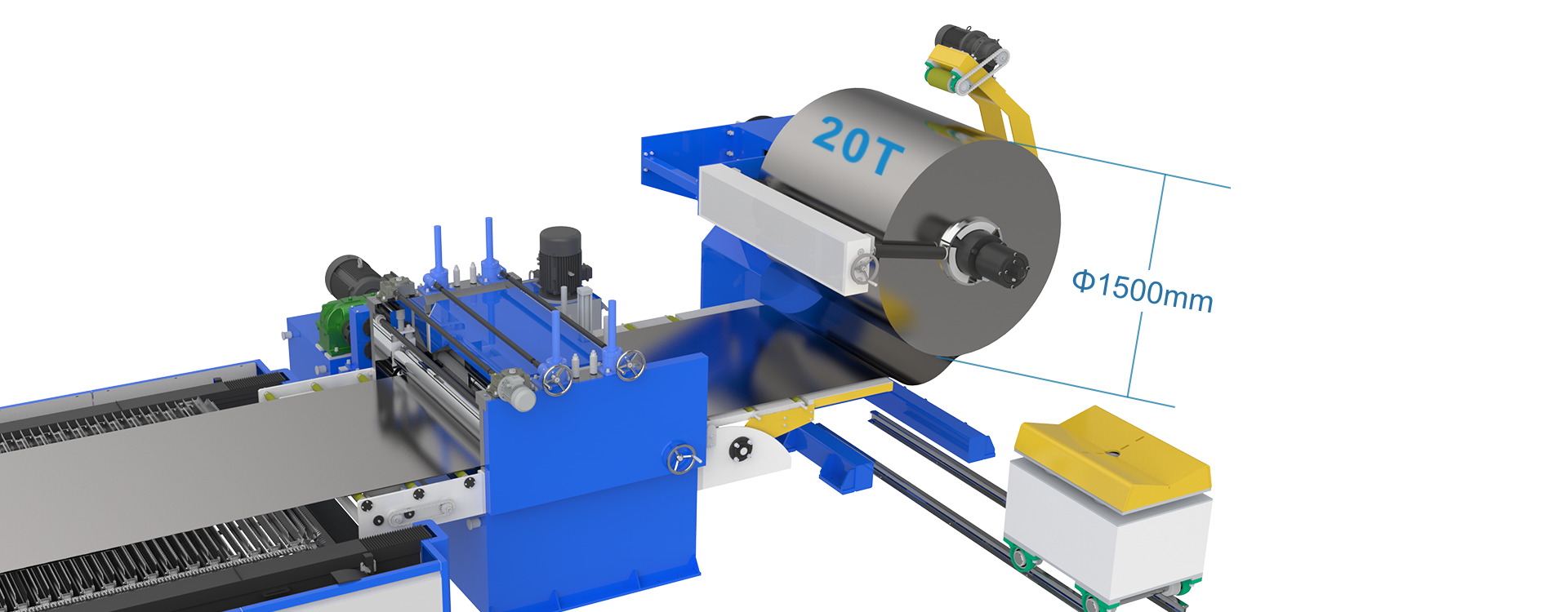

Dowell automatic coil production line integrates uncoiling, leveling, servo feeding and laser cutting into one intelligent system. It reduces labor cost, minimizes material waste, and significantly improves overall efficiency, making it the ideal upgrade for modern metal processing factories.

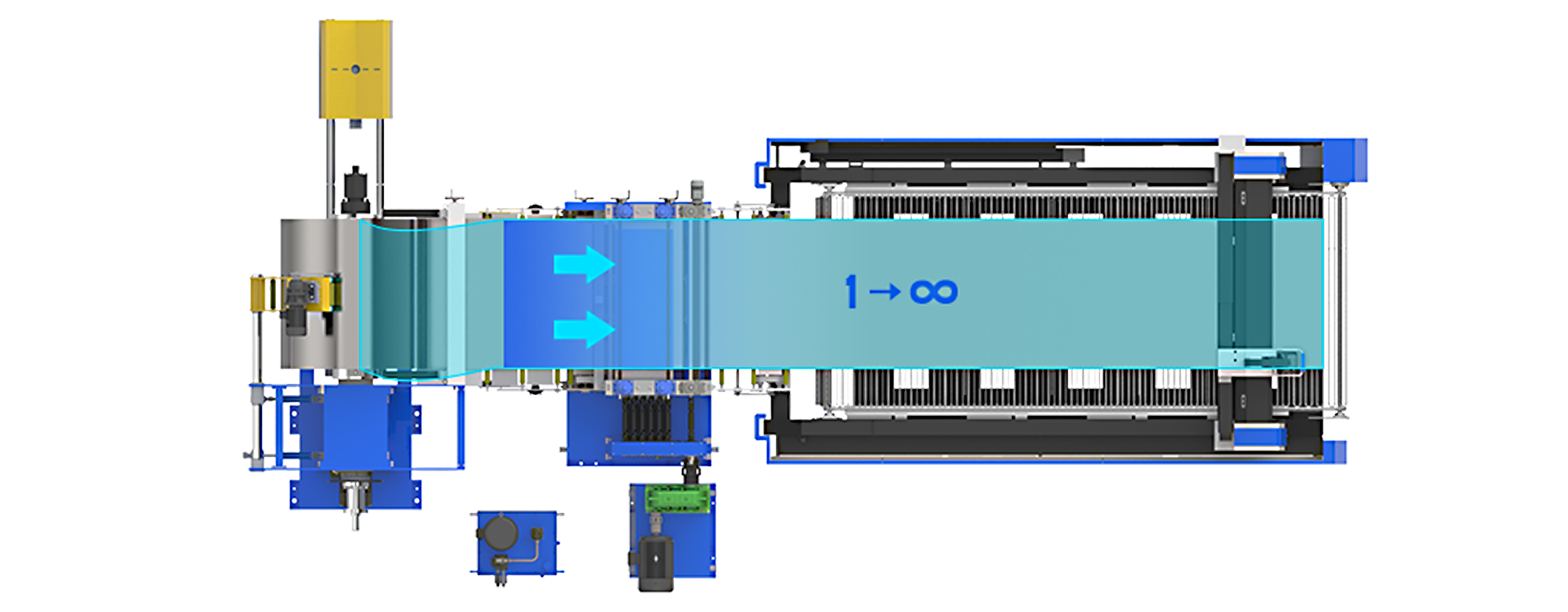

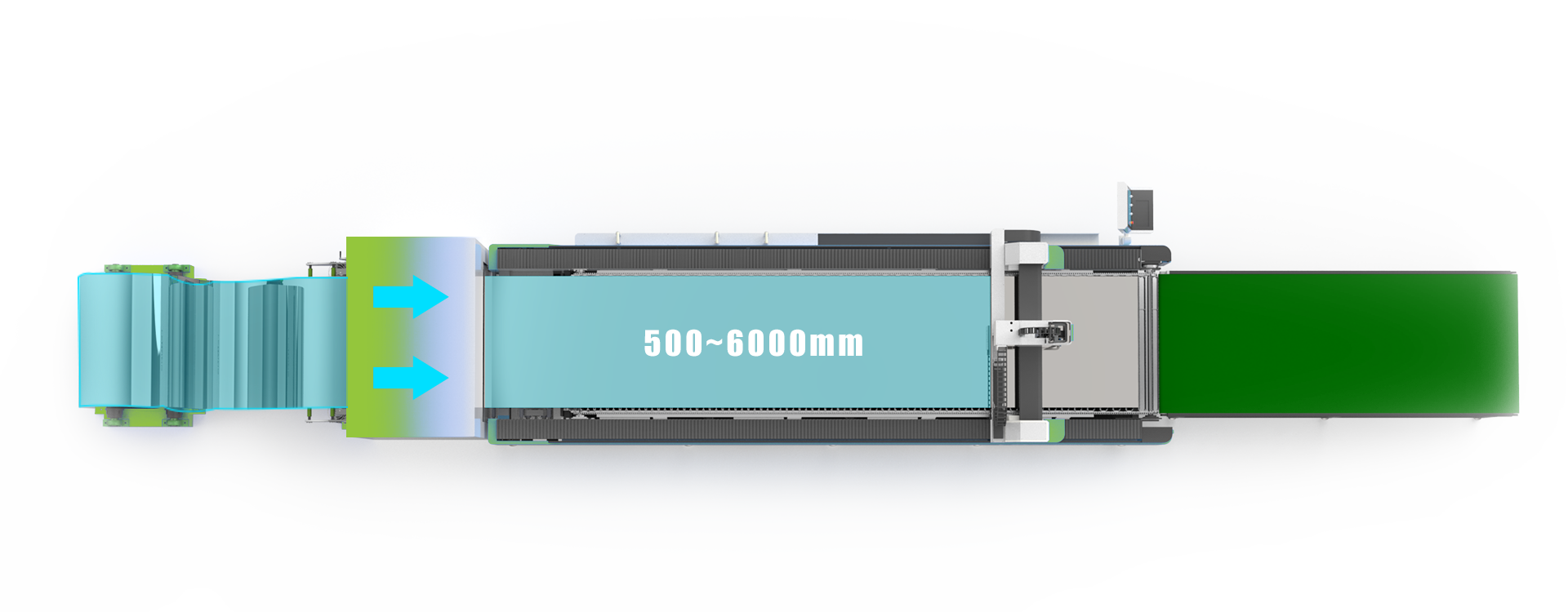

The initial feed roll is leveled by a leveling machine before entering the laser cutting platform for cutting. After cutting, the leveling machine automatically feeds the material, and the rotating platform automatically transports the cut parts to the receiving platform. After the leveling machine finishes feeding, the system runs to cut the second layout drawing material. At the same time, the numbering and collection of the first material can be performed. This process is repeated to greatly improve the overall processing speed and efficiency.

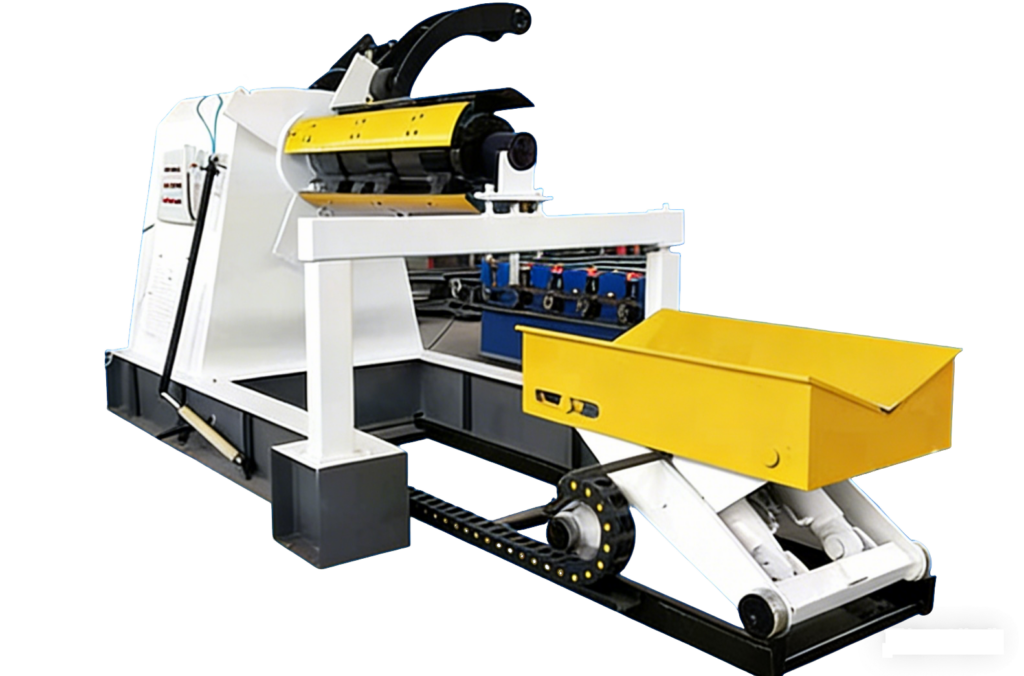

An uncoiler is an essential piece of equipment in an automated sheet metal production line. Its functions are twofold: first, to support the steel coil by tightening its inner bore; and second, to feed the end of the steel strip into the leveling machine through rotation in conjunction with a straightener. The uncoiler’s main shaft has two functions: driving the steel coil to rotate and providing tension and support.

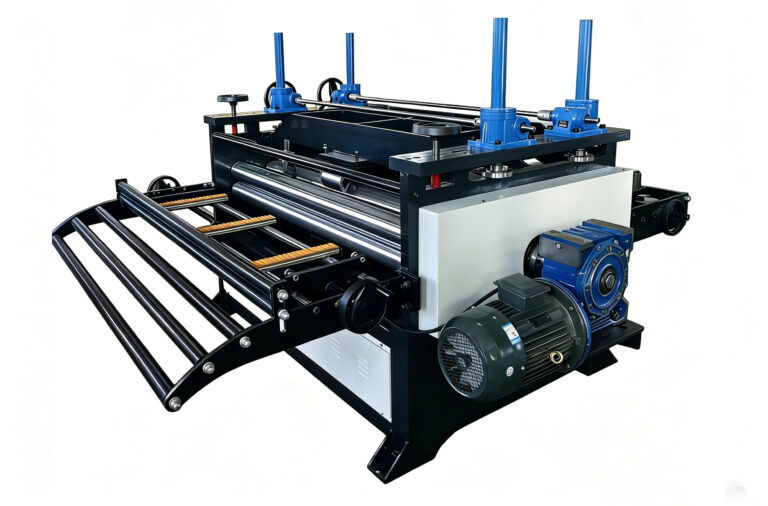

The leveling machine is based on the Bauschinger effect of metal materials. It eliminates the original curvature difference of the sheet material by repeatedly bending it with multiple rollers. It adopts a non-parallel roller structure and is specially designed to adjust and correct various planes to a precise level. It can process a variety of metal materials such as stainless steel, copper, and iron, and significantly improve their flatness, accuracy, and surface quality.
The cutting unit adopts a new type of fiber laser (electro-optical efficiency up to 37%), a fully enclosed laser cutting head, a high-strength bed, a reverse-tooth rolling transmission, and a double aluminum alloy crossbeam structure, which is more energy-efficient and environmentally friendly, with faster cutting speed and longer service life.

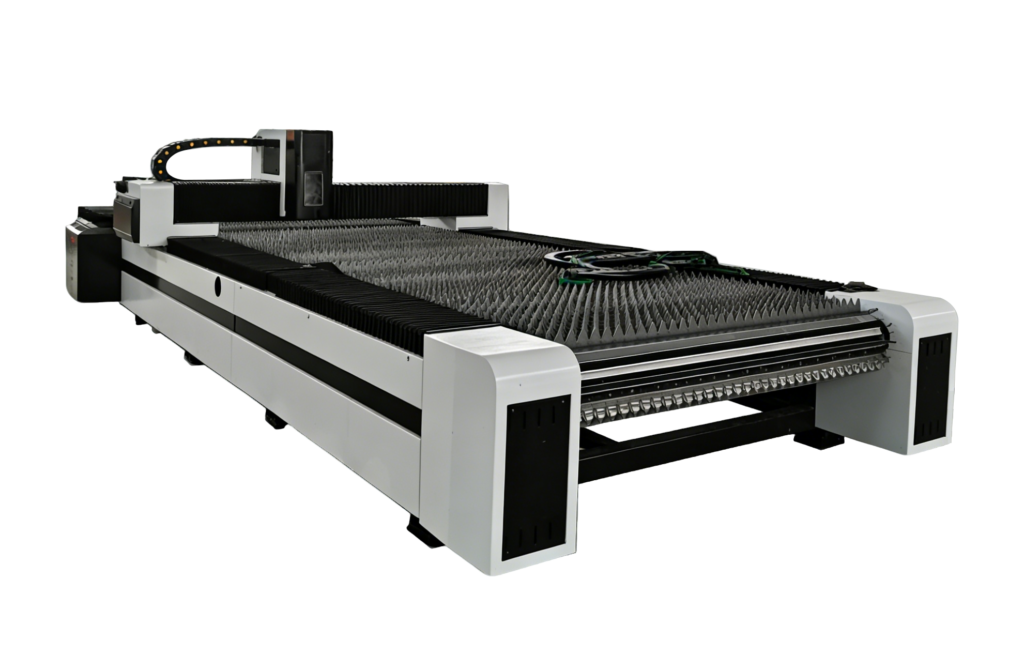

Automatic rotary laser cutting machine: includes a coil rack, leveling device, laser machine bed, receiving platform, and automatic blade rotation assembly.
Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Aenean commodo ligula eget dolor. Aenean massa. Cum sociis natoque penatibus et magnis ultricies nec, pellentesque eu, pretium quis, sem. Nulla consequat massa quis enim. Donec pede justo, fringilla vel, aliquet nec, vulputate eget, arcu. In enim justo, rhoncus ut, imperdiet a, venenatis vitae, justo
Across the endless meadows, where the rivers weave like silver threads, a solitary cottage stands untouched by time. Its walls hum with stories of the past, waiting to be told. lies the kingdom of the deep. Across the endless meadows, where the rivers weave like silver threads, a solitary cottage stands untouched by time. Its walls hum with stories of the past, waiting to be told.
Through the icy tundra, past the frozen rivers, the last great stronghold stands tall against the wind. Legends tell of warriors who never fell, their spirits guarding the ancient halls. Through the icy tundra, past the frozen rivers, the last great stronghold stands tall against the wind. Legends tell of warriors who never fell, their spirits guarding the ancient halls.
From loading, uncoiling, leveling, feeding, cutting to unloading, this automated production line requires no manual intervention, increasing production efficiency by at least 30% and achieving zero waste to the greatest extent possible.
Unparalleled flexible manufacturing, significantly improved material utilization, high precision and quality, and the ability to handle complex parts and special materials.
It eliminates material jams, scratches, and deviations, supporting stable high-speed operation while greatly improving processing efficiency and cutting quality.
The full-process intelligent control system unifies trajectory planning, parameter auto-tuning, real-time monitoring, and fault self-diagnosis throughout the entire cutting workflow. Powered by a high-speed EtherCAT bus and AI process algorithms, it automatically optimizes laser power, cutting speed, focus position, and gas flow to deliver consistent cut quality, minimize idle time, and enable stable, unmanned operation for diverse sheet metal and profile processing.
Dowell coil-fed laser cutting line adopts top-brand core components and a highly integrated structure, ensuring stable operation, high precision and long service life. Below is the standard configuration for your reference. We also provide customized configuration plans to match different material thickness, production capacity and processing needs.
Item.
Brand
Source laser
3000W、6000W、10000W (Raycus/IPG/Max optional)
Tête laser
RayTools
Cutting System
Cypcut/FSCUT B/PA (optional)
Machine Tool Mechanical Platform & Accessories
Stress-Relieved & Tempered Bed
Electrical Control System
Schneider (and other imported components)
Pneumatic Control System
Japan SMC
Precision Linear Guides
Taiwan HIWIN
Precision Gears & Racks
Germany Atlanta
Machine Tool Accessories
In-house Manufactured
Control System
Shanghai Weihong (TBD)
Servomoteur
Shenzhen Inovance
Reducer
Japanese Shimpo
Chiller Unit
Wuhan Hanli
Air Compressor
.
Optional (Customer Selection)
Voltage Stabilizer
Optional (Customer Selection)
Material Collection Table
6000mm*1550mm
Cutting Platform
Circulating Platform
Processing Table Surface
6000mm*1550mm
Experience a fully closed-loop production process designed for maximum efficiency: automatic uncoiling → high-precision leveling → servo feeding → high-speed laser cutting → finished product output. With stable operation, zero-tailings cutting and 24/7 unattended capability, this integrated line greatly improves productivity while lowering your overall production cost.
Number
Unit Name
Quantity
Core Components
Core Functional Positioning
1.
Material Preparation Unit
1 set
V-type polyurethane-surfaced stock stand
Supports coils awaiting processing; maximum load capacity: 10 tons.
2.
Loading Unit
1 set
Wireless remote-controlled hydraulic lifting cart (rail-guided)
Automated transfer and loading of steel coils from the preparation rack to the uncoiler
3.
Uncoiling Unit
1 set
Single-Arm hydraulic expansion uncoiler (Featuring auxiliary support structure, hold-down roller, coil-end straightener, pneumatic brake, and other functions)
Coil uncoiling/recoiling, tension control, coil-end straightening, and feeding
4.
Feeding and Pinching Unit
1 set
Hydraulic telescopic oscillating guide plate; Dual-drive polyurethane pinch rollers
Guides the strip head during threading and smoothly feeds the strip into the leveling unit.
5.
Precision Leveling Unit
1 set
4-high 19-roll precision leveler (Including pinch rolls, backup rolls, and motorized roll gap adjustment system)
Eliminates internal stresses and warping in sheet metal to achieve high-precision leveling.
6.
Loop Buffer Unit
1 set
Swing-bridge loop pit, curved guide frame, and dual laser/photoelectric detection system
Stores sheet material and synchronizes the speed differential between continuous leveling and intermittent feeding.
7.
Guiding and Centering Unit
1 set
Dual-side guide rollers, motor-driven lead screw centering mechanism, digital display unit
Guides and aligns the edges of the sheet material, eliminates lateral deviation, and ensures precise cutting alignment.
8.
Servo Motor Feeding Unit
1 set
Roller-type servo feeder (Utilizing two pairs of polyurethane feed rollers and a high-precision servo drive system)
Feeds with precision according to set parameters, synchronized with the laser cutting cycle.
9.
Fiber Laser Cutting Unit
1 set
Gantry-type laser cutting machine, fiber laser source, auto-focusing cutting head, CNC system, intelligent nesting software
Performs high-precision static cutting of sheet metal and strips, enabling the processing of various complex-shaped parts.
10.
Circulation, Conveying, and Unloading Unit
1 set
Servo-motor-driven circulating cutting platform, detachable serrated support racks, finished product receiving table, and scrap collection cart.
Synchronized sheet conveying prevents surface scratching, while finished parts and scrap are automatically separated.
11.
Hydraulic and Pneumatic Systems
1 set
Hydraulic power units, hydraulic cylinders/valve blocks; pneumatic cylinders/valves, air preparation components, high-pressure cutting gas circuits
Provide hydraulic and pneumatic power to the production line, and meet the high-pressure gas requirements for cutting operations.
12.
Electrical and Control Systems
1 set
Main control cabinet, Siemens PLC system, console-style main operator station, field operator stations, touchscreens, sensing and detection components
Full-Process automation control, status monitoring, fault alarms and diagnostics
13.
Safety Protection and Dust Extraction System
1 set
Fully enclosed protective enclosure, zoned follow-up dust extraction system, fume extraction unit, full-line safety interlocks, and emergency stop protection
Isolates fumes and dust, ensuring the safety of both the equipment and the operators.

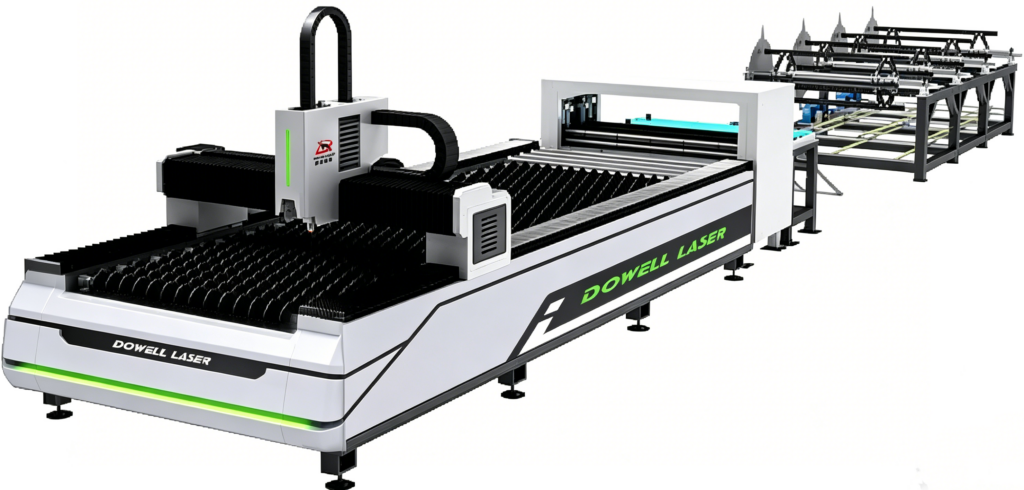

The Dowell Laser Automatic Coil Flattening & Laser Cutting Production Line is a fully automated integrated production line for processing metal coils. Its core function is to automate the entire process from coil loading to precision leveling, accurate feeding, and high-speed cutting, requiring minimal human intervention. This significantly improves production efficiency and processing accuracy while reducing labor and material costs, making it suitable for the large-scale, high-precision production needs of various metal processing companies.
Below, we will break down the four core components of the production line, clarifying the role and advantages of each part, and how they work together to form a complete production loop:
This single-cantilever hydraulic expansion and contraction uncoiling equipment is designed specifically for metal coil processing production lines. It comes standard with an end auxiliary support device to solve the problems of sag deformation, vibration, and spindle wobble of large-tonnage, wide-width, and large-outer-diameter steel coils in a single-cantilever state. It achieves high-speed, stable, and continuous uncoiling and is compatible with automated production lines, including laser cutting, leveling, stamping, and slitting.
Designed for high-precision leveling of thin sheets, stainless steel, aluminum sheets, galvanized sheets, etc., it adopts a three-upper-three-lower six-roller system structure, combined with a middle support micro-adjustment roller, to effectively eliminate internal stress, waviness, warping, and twisting, achieving ultra-high flatness precision leveling. It is the core precision equipment of the coil laser cutting production line.
This high-precision CNC servo feeding equipment adopts a multi-roller clamping structure, ensuring smooth, non-slip, and material-free feeding. The servo motor features closed-loop control, providing high positioning accuracy, precise feeding length, and fast response. It can achieve continuous and stable automated feeding, significantly improving the efficiency and processing precision of the entire production line.
This high-power, high-speed fiber laser cutting machine boasts an ultra-high power of 12000W, enabling faster cutting of thick plates with smoother, taper-free surfaces. Suitable for various metals, including carbon steel, stainless steel, aluminum alloy, copper, and more, it offers strong thick plate cutting capabilities, high efficiency, and excellent stability. When paired with an automated roll production line, it can achieve continuous, high-speed production around the clock.
This integrated laser processing production line consists of four highly coordinated modules: automatic loading, precision leveling, high-performance laser cutting, and intelligent unloading.
From coil loading, uncoiling, and high-precision leveling to high-speed servo feeding and automatic laser cutting, every step is optimized for maximum productivity. This closed-loop processing flow helps you achieve stable quality, zero tailings, smooth cutting, and high material utilization, enabling higher output at lower operating costs.
Function: Transports steel coils from the loading station to the uncoiler.
Key Features: Typically has a load capacity of 10-30 tons; features a V-shaped saddle design to prevent coil rolling; equipped with a coil width detection sensor for automatic centering.
Function: Unwinds steel coils at a constant speed and feeds a continuous strip into subsequent processing stages.
Key Features: The expanding mandrel secures the inner diameter of the coil and generates uncoiling tension (typically 3,000–8,000 N).
Function: Eliminates internal stresses within coiled material by repeatedly bending the steel strip using multiple sets of staggered rollers, thereby ensuring the flatness of the sheet metal.
Function: Stores a specific length of steel strip to ensure a continuous supply of material to downstream processes during coil changes at the uncoiler, thereby enabling non-stop production.
Function: Precisely feeds the leveled steel strip into the laser cutting zone according to a preset length.
Key Features:
Driven by a servo motor and transmitted via a ball screw, achieving a positioning accuracy of ±0.02 mm/m.
Function: As the steel strip moves continuously, the laser head dynamically tracks its motion to perform the cut, thereby achieving “flying cutting.”
Eliminates the acceleration and deceleration time associated with “stop-and-go” operations, boosting effective laser utilization from 50% to over 85%.
Function: Automatically sorts and stacks finished parts, and automatically recovers scrap material.
Key Features: Visual recognition system distinguishes between different parts and classifies them according to pre-set rules.
Traditional stamping and blanking rely on molds, high investment, long mold-making cycles, and limited flexibility for small-batch production. It also generates significant noise, requires frequent mold maintenance, and has limitations in processing complex shapes.
Dowell laser coil-fed blanking line realizes fully automatic uncoiling, leveling, feeding, laser cutting, and blanking in one continuous process. It needs no molds, supports flexible processing of any complex graphics, greatly reduces mold cost and production preparation time, improves material utilization, and achieves quieter, more precise, and more efficient blanking for modern sheet metal factories.
Comparison Dimensions
Traditional Stamping Blanking
Auto Laser Uncoiling Blanking Line
Machining accuracy
±0.3mm~0.5mm, easily affected by die wear deviation
±0.1mm, Laser cutting + servo positioning ensures precision throughout the entire process.
Sheet flatness
No dedicated leveling process results in wavy edges and residual internal stress, easily leading to pot deformation.
Multi-roller leveling technology ensures flatness error ≤0.1mm/m, eliminating substrate defects.
Material utilization
High material loss at the beginning and end, scrap rate 8%~12%.
Continuous cutting eliminates waste, reducing scrap rate to 2%~3%, saving 5%~8% of materials.
Production flexibility
Custom molds are required, resulting in high switching costs and difficulty adapting to irregular designs.
Mold-free cutting allows for rapid response to different sizes.
Production efficiency
Manual feeding and sorting are inefficient and limit capacity.
Fully automated process increases efficiency by over 30%, adapting to high-volume order demands.
Environmental safety:
Stamping noise ≥90 decibels, waste spillage causes pollution.
Cutting noise is as low as 75 decibels, waste is automatically recycled, meeting environmental standards.
Explore our fully automatic coil flattening and laser cutting production line. Contact us for details, specifications, and the best quotation.
