Cantilever-type H Beam Steel Section Laser Processing Center
The 18m ultra-long workspace, 5-axis one-pass cutting / drilling / beveling / marking, 8-ton load capacity, ±0.03mm precision. Weld-ready results, 70% faster production, zero repositioning. Ideal for bridge, high-rise, heavy machinery structural fabrication.
Production Purpose
DW Series Cantilever-type Steel Laser Processing Center
The platform carrying the laser cutting head moves along the length of the steel profile with a large range of motion, while the steel profile remains fixed. This supports contour detection, enabling processing such as cutting, drilling, chamfering, and arc cutting of H-beams, curved steel, and channel steel profiles. This platform can perform functions such as drilling, cutting, grooving, and marking on steel materials. It supports bevel grooving for various joint types and is compatible with cutting based on TEKLA / Solidworks 3D modeling data files. The dates generates G-code, enabling seamless integration from design to production, efficiently completing drawing and layout tasks and significantly shortening production preparation time. It also supports nesting and material optimization, achieving material utilization rates greater than 99%, and minimizing material waste through material splicing.
Features and Advantages
DW Series Cantilever-type Steel Laser Processing Center
The cantilevered open structure allows for convenient mechanical adjustment and easy material feeding; it utilizes a heavy-duty machine tool structure, with all functional components such as the laser and water chiller mounted on the moving platform, moving along with the cutting head. This effectively avoids energy loss caused by excessively long optical fibers, ensuring the stability and high efficiency of laser cutting; the dual-station design allows for simultaneous cutting at one station while the other station is used for lifting and loading/unloading, saving loading and unloading time and achieving continuous and efficient processing of structural steel; the processing is flexible, allowing for both segmented and full-length processing.
Processing Flow
DW Series Cantilever-type Steel Laser Processing Center
Manual crane material (two at a time) — Search alignment and profile detection (Station 1) — Cutting (Station 1) –Search alignment and profile detection (Station 2) — Cutting (Station 2) –Simultaneous manual loading and unloading (Station 1) –Round and round.

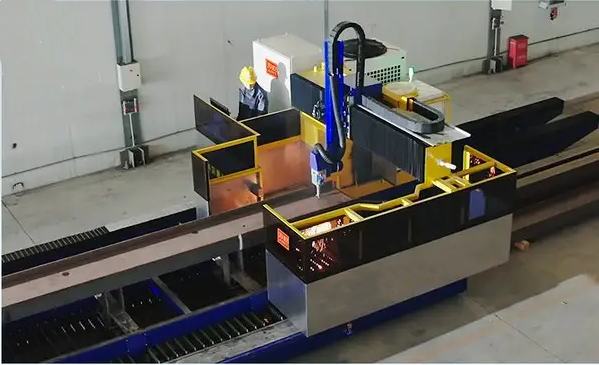

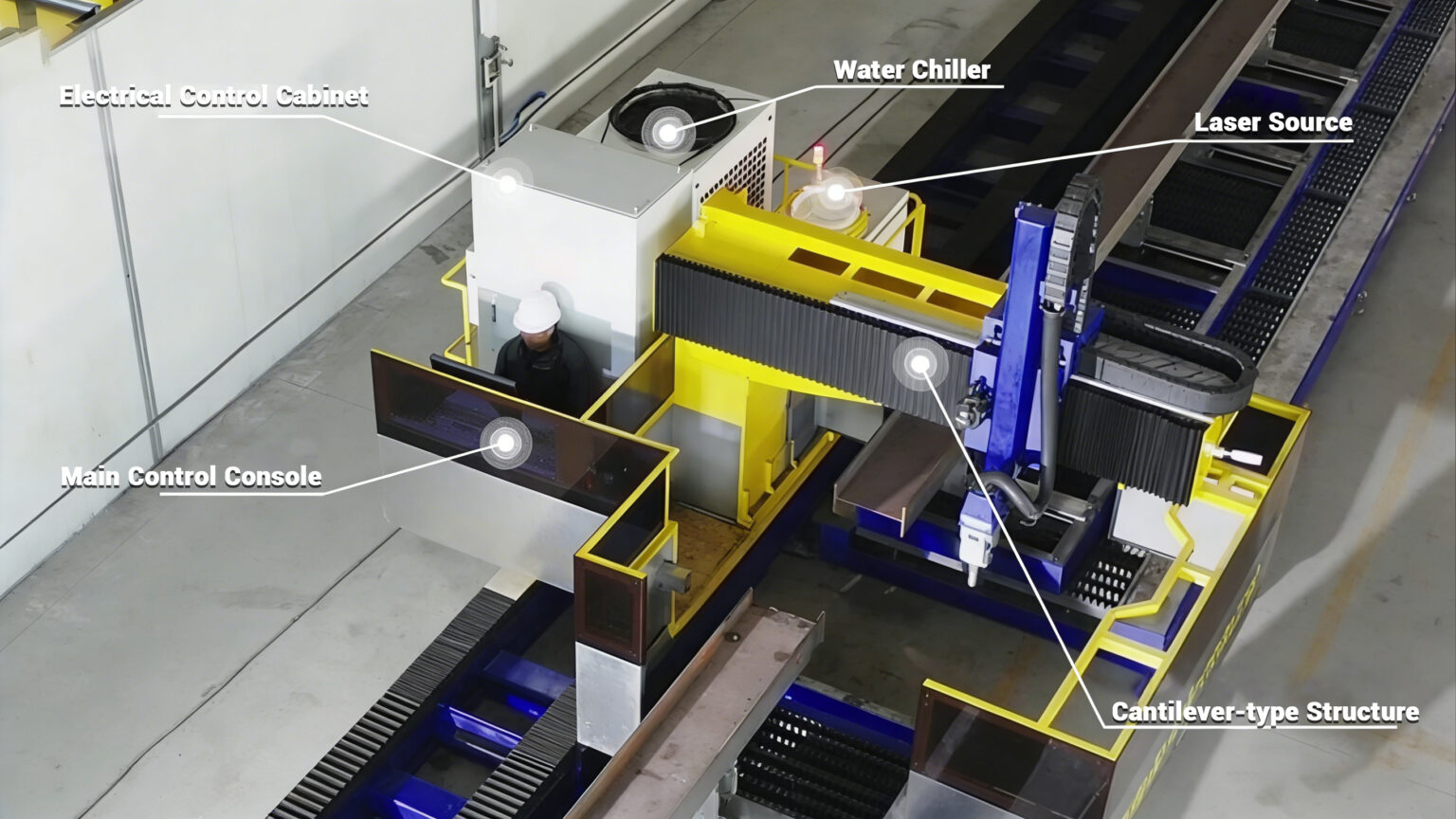

Heavy-duty Machine Cantilever Structure
The Modular Heavy-duty Rail-type Bed Structure
The modular heavy-duty rail-type bed structure is the core cornerstone of Dowell Laser Cantilever-type Steel Section Laser Processing Center, designed to deliver unparalleled stability, durability and flexibility for high-intensity, high-precision metal processing scenarios—bringing tangible production value to your enterprise with hard-core structural advantages. Unlike ordinary lightweight bed structures that are prone to deformation and vibration during long-term operation, our modular heavy-duty rail-type bed is forged from high-quality thickened alloy steel, undergoing strict quenching and tempering heat treatment processes to eliminate internal stress, enhance structural rigidity and wear resistance, and ensure long-term dimensional stability even under 24-hour continuous high-load processing conditions. This robust structural design effectively suppresses vibration caused by high-power laser cutting and heavy-section steel loading, avoiding cutting errors and burrs, and laying a solid foundation for precise section steel beveling, flat plate beveling, square tube and round tube one-time forming processing.
Section Steel, Flat Plate, Square Tube &Round Tube Beveling
Equipped with high-end 5-axis CNC control system and high-power fiber laser, Dowell Laser Cantilever-type Steel Section Laser Processing Center breaks through the limitations of traditional separate processing, realizing one-stop one-time forming of section steel beveling (±45° adjustable), flat plate beveling, square tube and round tube cutting without repeated clamping or secondary processing. It integrates automatic feeding, precision positioning, intelligent beveling, high-precision cutting and automatic blanking into a seamless workflow, eliminating cumulative errors caused by multi-equipment turnover and ensuring that each workpiece has smooth bevel surfaces, neat pipe sections, no burrs or deformation. With a built-in professional cutting process database, the equipment can automatically match power, speed and air pressure parameters according to different materials and specifications, ensuring stable and consistent processing quality even in mass production. Suitable for steel structure, engineering machinery, bridge construction and other industries, it helps enterprises reduce labor input, shorten production cycle by 60% and improve material utilization rate to more than 99%, creating greater production value with hard-core technology.
Technical Parameter
Core technical parameters with high rigidity, high precision and high efficiency, covering laser power, processing range and dynamic performance, providing reliable data support for efficient and stable steel cutting.
|
Item.
|
Spec.
|
Item.
|
Spec.
|
|---|---|---|---|
|
The breadth of H-beam steel |
100mm~1000mm |
The height of H-beam steel |
100mm~500mm |
|
Cutting model |
Fiber laser cutting |
Workpiece length |
L≤12000mm, support customization |
|
Cutting form |
Fixed length straight out, fixed length oblique cut and end jack function |
Mainly applicable workpiece materials |
H/I beam structual carton steel, stainless steel |
|
Laser source |
Max 20000W(Optional) |
Cutting thickness |
Punch cutting 1mm~40mm |
|
Bevel cutting |
±45° |
X/Y axis postioning accutacy |
±0.10mm/m |
|
X/Y axis repeated positioning accuracy |
±0.05mm |
Max. speed of spaceflight |
X: 15m/min, Y/Z: 30m/min |
|
Max. weight of raw material |
5000kgs (Customer Requirements) |
The floor area of the entire equipment |
18000mm*6000mm*4500mm |
Main Equipment Configuration
Dowell Laser's cantilever-type steel laser cutting machine features core components from globally renowned brands, combining top-tier configurations to ensure high rigidity, precision, and stability. It is suitable for all heavy-duty steel structure processing applications, guaranteeing long-term efficient operation and providing a solid foundation for cost reduction and increased efficiency in production.
Item.
Brand/Model
Place of Origin
Laser steel cutting machine
Dowell Laser
Chine
Bearing table
Dowell Laser
Chine
Laser cutting head
EC+Ophit Black King Kong
Chine
Height regulator
WIS Cut
Germany
High precision gear reducer
MOTOVARIO
France
High precision diagonal rack
YYC
Taiwan, China
Linear guide
TBI/HIWIN
Taiwan, China
Fiber laser source
MAX
Chine
Main servo drive and motor
Inovance
Chine
Numerical control system
WIS Cut (Beckhoff)
Germany
Electronically controlled proportional valve
Aventics
Germany
Laser special water cooler
S&A
Chine
Regulated power supply
Domestic supporting facilities
Chine
Nesting-Software
WIS Cut (Beckhoff)
Germany
Technology Path of Steel Structure Processing
Intelligent and efficient processing technology path, integrating automatic feeding, precision positioning, laser cutting and blanking.
One clamping completes the whole processing flow, ensuring high efficiency, high precision and stable quality for section steel processing.
Industries
A small river named Duden flows by their place and supplies it with the necessary regelialia. It is a paradise
Laserschneidprodukte
Besonders geeignet für das Präzisionsschneiden von Edelstahl, Kohlenstoffstahl, Legierungen, Messing, Kupfer, Titan und anderen Metallmaterialien. Es wird häufig in Metallprodukten, Fahrrädern, Metallmöbeln, Fitnessgeräten, Sportgeräten, landwirtschaftlichen Maschinen, Ausstellungsregalen und der Brandbekämpfung verwendet.
Anwendung
Construction
Für Balken und Säulen: H-förmige Stahlrohre werden häufig als Bodenträger und Träger in Gebäuden, Brücken und anderen Bauwerken verwendet. Kann auch als Treppenwange und Balustrade verwendet werden. Diese Rohre können auf präzise Größen und Formen zugeschnitten werden, wodurch eine starke und stabile Struktur gewährleistet wird.
Brücke
Laserschneidmaschinen für H-förmige Stahlrohre werden auch im Brückenbau zum Schneiden verschiedener Komponenten eingesetzt, darunter:
Träger: H-förmige Stahlrohre werden häufig als Träger für Brücken verwendet. Laserschneider können diese Rohre in präzise Größen und Formen schneiden und so sicherstellen, dass die Brückenstruktur stabil und langlebig ist.
Fachwerke: H-förmige Stahlrohre können auch als Fachwerke in Brücken verwendet werden.
Brückengeländer: H-förmige Stahlrohre können auch als Brückengeländer verwendet werden.
Schiff
Rumpf: H-förmige Stahlrohre werden üblicherweise als Rumpfbauteile verwendet
Deck und Schott: H-förmige Stahlrohre können auch als Deck und Schott von Schiffen verwendet werden. Diese Rohre können auf die genau erforderlichen Längen und Winkel zugeschnitten werden, um eine stabile und unterteilte Schiffsstruktur zu gewährleisten.
Masten und Ausleger: H-förmige Stahlrohre können auch als Masten und Ausleger für Schiffe verwendet werden.
petrochemische Industrie
Rohre: H-förmige Stahlrohre werden häufig als Rohre in der petrochemischen Industrie verwendet. Laserschneider können diese Rohre auf präzise Größen und Formen schneiden und so einen auslaufsicheren und sicheren Transport von Flüssigkeiten gewährleisten.
Druckbehälter: H-förmige Stahlrohre können auch als Druckbehälter in der petrochemischen Industrie eingesetzt werden. Laserschneider können diese Rohre auf präzise Größen und Formen schneiden und so sicherstellen, dass die Gefäße stark und langlebig genug sind, um hohen Drücken standzuhalten.
Lagertanks: H-förmige Stahlrohre können auch als Lagertanks in der petrochemischen Industrie eingesetzt werden. Laserschneider können diese Rohre auf präzise Größen und Formen schneiden und so eine sichere und zuverlässige Lagerung gewährleisten
Baumaschine
Mechanisches Gestell: H-förmige Stahlrohre werden häufig als Gestelle für verschiedene Baumaschinen verwendet. Laserschneider können diese Rohre in präzise Größen und Formen schneiden und so ein starkes und stabiles Fundament für die Maschinen gewährleisten.
Ausleger und Ausleger: H-förmige Stahlrohre können auch als Ausleger und Ausleger für Baumaschinen verwendet werden. von Auslegern und Waffen.
Stützen und Konsolen: H-förmige Stahlrohre können auch als Stützen und Konsolen für Baumaschinen verwendet werden.
All-in-one Laser Proceesing VS Traditional Processing
Dowell Laser H Beam Section Steel Laser Composite Processing Center has obvious and irreplaceable advantages compared with traditional steel section processing methods (flame cutting, plasma cutting, sawing, etc.), and the core differences are comprehensively compared as follows:
Comparison Item
Steel Section Laser Cutting
Traditional Processing
Required Equipment
Only one set structural steel laser cutting machine (a complete structural steel laser secondary processing line) to perform multiple processes: cutting, drilling, notching, welding hole creation, beveling, marking, scribing, etc.
Three-dimensional drilling machine, sawing machine, notching machine, beveling machine, plasma cutting machine, etc. (Manual assistance is still required for tasks such as powder coating and scribing.)
Labor Required
1-2 workers to load/unload materials and operate the machine.
5-6 workers to handle loading/unloading, material transfer, operating different machines, and manual marking/labeling.
Processing Efficiency
Average daily production (8 hours): 80-100 tons; approximately 4-5 times that of traditional methods.
Average daily production (8 hours): 20-30 tons.
Processing Accuracy
Using laser precision processing, the cutting accuracy is within 0.1mm; using laser line scanning measurement and compensation, a positioning error accuracy of 1-2mm is guaranteed;
Using the plasma cutting equipment has an accuracy of approximately 1mm, which is 10 times less precise than laser processing; manual marking with a tape measure has an accuracy error of 5-10mm.
Space Occupied
Linear dual-station system: approximately 2 * (2m * 13m) = 52m² (50-60m²)
The space occupied is approximately 2-3 times that of a steel profile cutting machine.
Material Transfer
Multiple processes completed in a single step, eliminating the need for material transfer.
Frequent transfers
Return on Investment
High initial investment, significant increase in yield; large initial investment, high later income.
Low initial investment, low yield; low initial investment, low later income.
Equipment Failure Rate
A machine that is mature in application, easy to operate, and has a low failure rate.
Drilling rigs, sawing machines, flame cutting, plasma cutting, and other various operations have multiple potential failure points; manual involvement makes it difficult to guarantee consistency.
Cost-effectiveness
Double the production capacity, smaller footprint, reduced labor costs, energy-efficient and environmentally friendly, and consistent quality; high long-term cost-effectiveness.
Low production capacity, large footprint, high labor costs, significant pollution, and inconsistent quality; low long-term cost-effectiveness.
Sicherheit
True 3D five-axis machine tools ensure the laser always points to the material being processed, providing excellent safety! (Fake 3D five-axis machine tools have risks of laser divergence, uncontrollable direction, and unpredictable hazards); Easy operation, no need for material handling;
Multiple processes involve multiple risk points; repeated material handling increases the safety risks of manual operation.
Production Management
Secondary Processing Line: Automated production, processing task orders, production reports, work order reporting, MES system integration, production information management, complete set production.
Manual product inspection; document organization; manual data entry. Difficult to achieve digital and information-based management and complete set production.
Laser Bevel Cutting VS Traditional Bevel Cutting

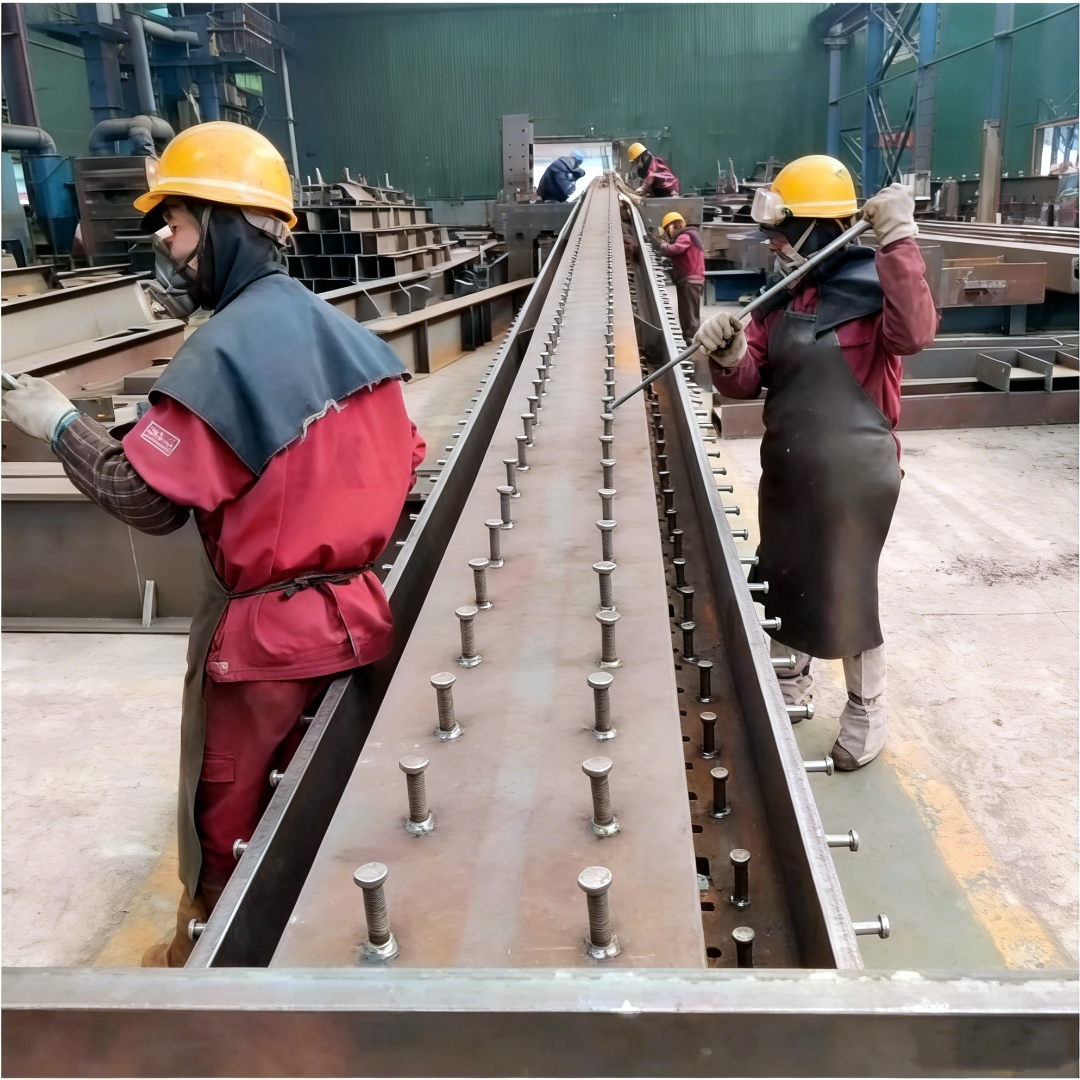

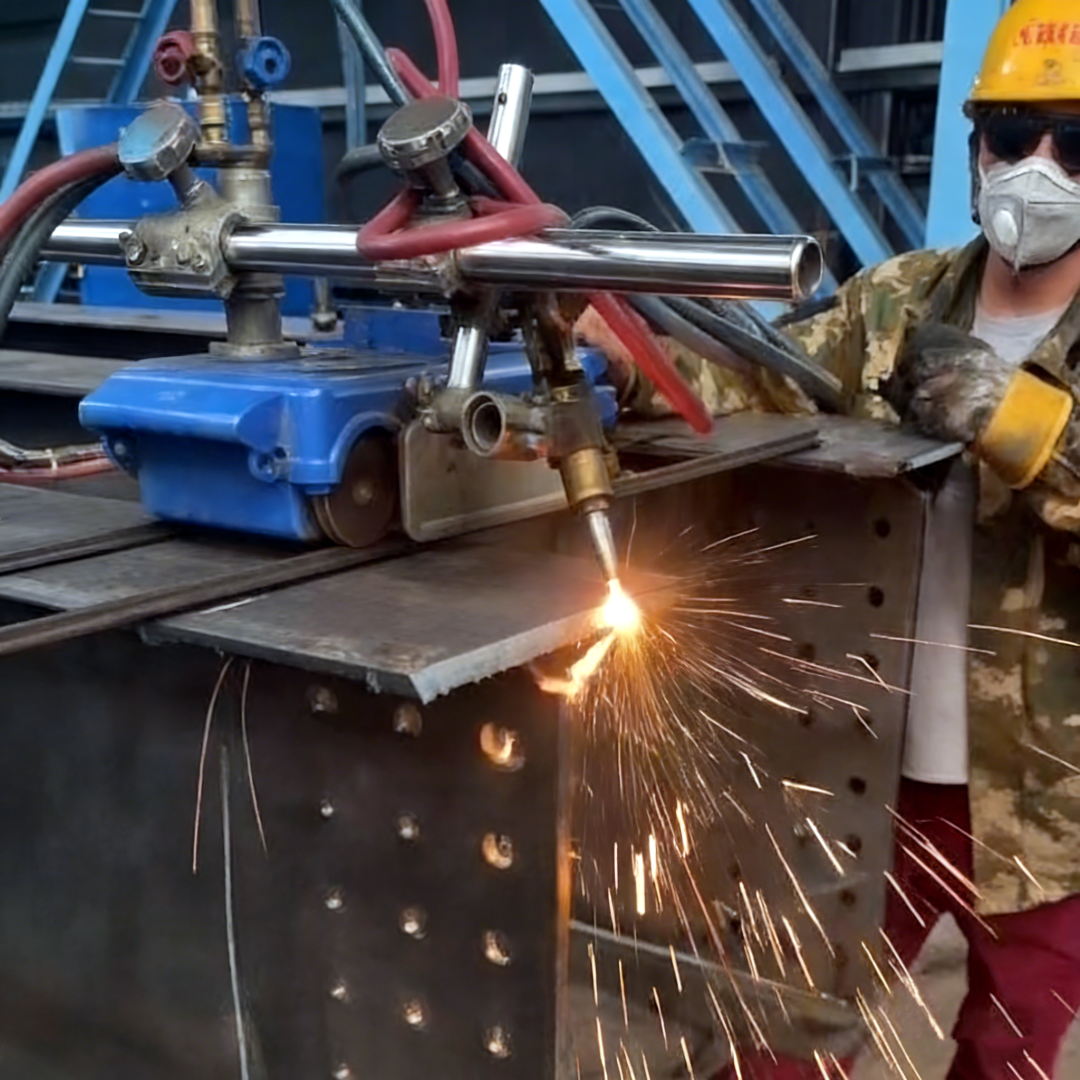

Traditional bevel cutting methods rely heavily on manual labor, resulting in low efficiency and poor processing accuracy, as well as environmental problems such as noise and dust. In contrast, using Dowell laser bevel cutting technology, the dimensions are precise, the hole walls are smooth and perfectly vertical, mechanical marking is possible, and the process is clean and free of debris.
At the same time, when performing bevel cutting for processing, in order to ensure the strength of the weld, high requirements and high precision are needed for the bevel cut surface, and there should be no slag on the welding surface.
-
Manual Drilling
Inefficient, difficult to accurately position the holes, and requires frequent checking of drawings to determine the location.
-
Mechanical Drilling
Adds extra steps, repeated clamping is inefficient.
-
Это программное обеспечение позволяет пользователям создавать и редактировать траектории, по которым будет выполняться разрез, включая указание начальной и конечной точек разреза, а также любых кривых или углов, которые необходимо сделать.
Excessive heat concentration can easily lead to deformation of H-beams, resulting in excessively wide cuts and poor circularity.
FAQ
Welche verschiedenen Arten von Laserschneidmaschinen für H-Stahlrohre gibt es?
- Faserlaser-Schneidemaschinen: Faserlaserschneidmaschinen sind die gebräuchlichste Art von Laserschneidmaschinen für H-Stahlrohre. Sie sind bekannt für ihre Effizienz, Geschwindigkeit und Fähigkeit, eine Vielzahl von Materialien zu schneiden.
- CO2-Laserschneidmaschinen: CO2-Laserschneidmaschinen sind weniger verbreitet als Faserlaserschneidmaschinen, werden aber dennoch für einige Anwendungen eingesetzt. Sie sind für ihre Fähigkeit bekannt, dicke Materialien zu schneiden.
Wie viel kostet eine Laserschneidmaschine für H-Stahlrohre?
Der Preis einer Laserschneidmaschine für H-Stahlrohre kann abhängig von mehreren Faktoren variieren, einschließlich der Größe und Leistung des Lasers, der Schneidkapazität der Maschine und den zusätzlichen Funktionen, die enthalten sind. Im Allgemeinen können Sie jedoch damit rechnen, für eine Laserschneidmaschine für H-Stahlrohre zwischen 85624,71 und 172630,46 USD zu zahlen.
Wie wählt man eine Laserschneidmaschine für H-Stahlrohre aus?
Die folgenden Faktoren sollten berücksichtigt werden Wann Auswahl einer Laserschneidmaschine für H-Stahlrohre:
- Die Größe und Dicke der H-Trägerrohre, die Sie schneiden müssen
- Die Arten von Schnitten, die Sie durchführen müssen
- Der Automatisierungsgrad, den Sie benötigen
- Dein Büdget
Top führende Hersteller von Laserschneidmaschinen für H-Stahlrohre?
Einige der führenden Hersteller Zu den Laserschneidmaschinen für H-Stahlrohre gehören:
- Dowell-Laser (Chine)
- BLM-Gruppe (Italien)
- Geliebte (Japan)
- Hans Laser (Chine)
- Mazak Optonics Corporation (USA)
