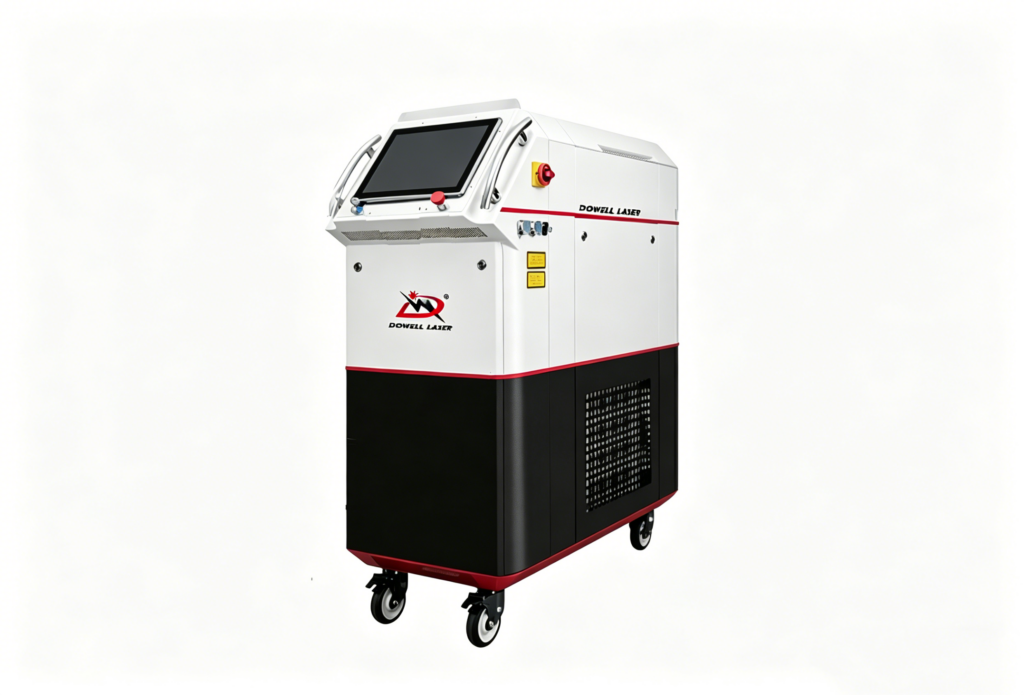

200w 300w 500w Pulse Industries Laser Cleaning Machine for Sale

Einführung

The pulse laser cleaner (pulse industries laser paint remover, pulse industries laser stripper) is small in size, easy to carry, easy to move, and has a wide range of application scenarios to meet different application needs.

Under the action of pulsed laser cleaning, the laser beam can instantly penetrate stains or defects with high-intensity energy, causing it to vaporize and explode instantly to achieve the purpose of removing paints, coatings, oxides, dirt and other contaminants.

pulse industries laser paint remover video

pulse fiber laser cleaning machine video

pulse industries laser paint remover

Paramètres techniques

Pulse laser cleaning machine types

200w

$ 8000
  • Laser interface: QCS17/20
  • Cleaning width:<150mm
  • Cleaning length:<150mm
  • Cleaning speed: <30000mm>
  • Cleaning efficiency: 0.08-8㎡/min
  • Supported laser power: 200W/pulse
  • Linsenschutzgas: Nein
  • Temperature protection: 2
  • Cleaning mode: straight line, rectangle, ellipse, wave, petal Spiral Grid Figure 8
  • Lens reflection wavelength: 1050~1090nm
  • Storage temperature: -10 to 60℃
  • Working temperature: -15 to 65℃
  • Gun body weight: 850g
  • Stromversorgung: ±15V/3A
  • Gun dimensions: 253×66×97mm

300w

$ 9000
  • Laser interface: QCS17/20/24
  • Cleaning width:<150mm
  • Cleaning length:<150mm
  • Cleaning speed: <30000mm>
  • Cleaning efficiency: 0.08-8㎡/min
  • Supported laser power: 300W/pulse
  • Lens protective gas: yes
  • Temperature protection: 1
  • Cleaning mode: straight line, rectangle, ellipse, wave, petal Spiral Grid Figure 8
  • Lens reflection wavelength: 1050~1090nm
  • Storage temperature: -10 to 60℃
  • Working temperature: -15 to 65℃
  • Gun body weight: 1300g
  • Stromversorgung: ±15V/3A
  • Gun dimensions: 236×91×108mm

500w

$ 26000
  • Laser interface: QCS17/20/24
  • Cleaning width:<150mm
  • Cleaning length:<150mm
  • Cleaning speed: <30000mm>
  • Cleaning efficiency: 0.08-8㎡/min
  • Supported laser power: 500W/pulse
  • Lens protective gas: yes
  • Temperature protection: 1
  • Cleaning mode: straight line, rectangle, ellipse, wave, petal Spiral Grid Figure 8
  • Lens reflection wavelength: 1050~1090nm
  • Storage temperature: -10 to 60℃
  • Working temperature: -15 to 65℃
  • Gun body weight: 1470g
  • Stromversorgung: ±15V/3A
  • Gun dimensions:236×91×108mm

Merkmale

  • Green and environmentally friendly: No chemical solvents are used, which avoids environmental pollution problems caused by chemical cleaning.
  • High cleaning accuracy: Surface contaminants such as rust, oil, paint, and coatings can be accurately cleaned without damaging the substrate.
  • Wide scope of application: It can be used for cleaning various complex structures such as flat surfaces, curved surfaces, holes, and gaps.
  • Simple operation: It adopts plug-and-play portable power supply design and is easy to use.

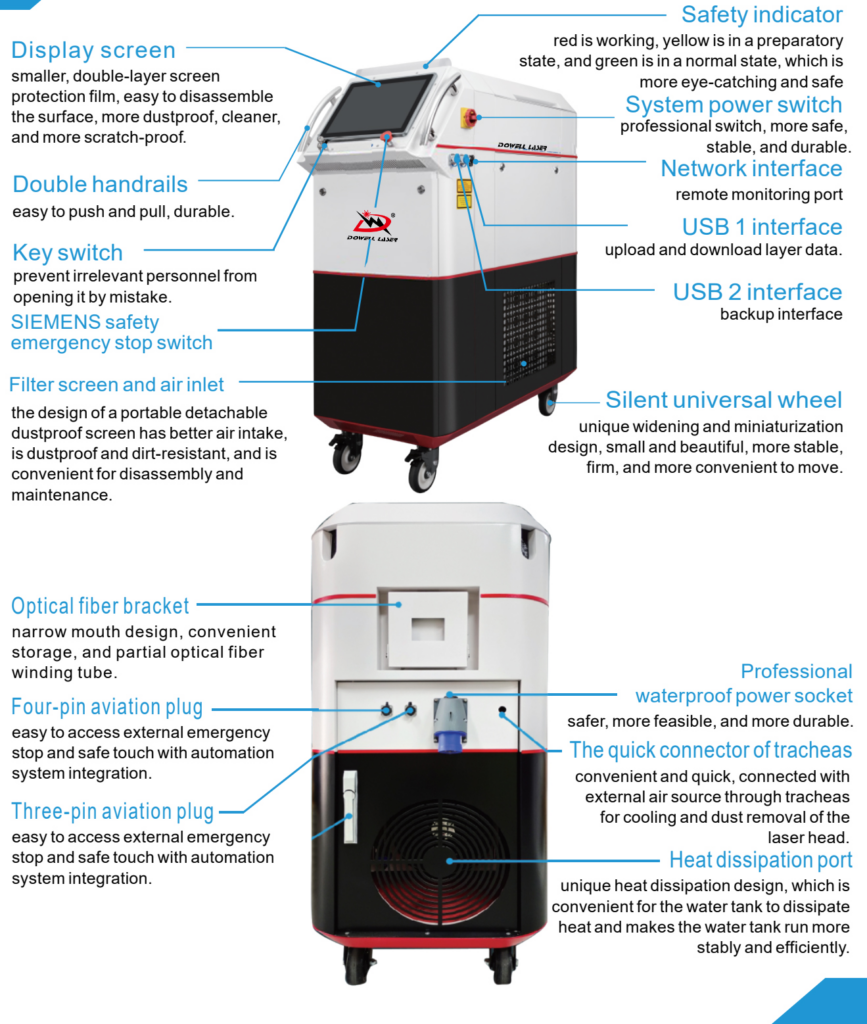

Aufbau

cleaning machine galvanometer

Clean airport mirrors

Cleaning efficiency is higher
Cleaning width up to 150*150mm

laser cleaning field mirror

Annular air knife protection upgrade

The unique wind tunnel porous annular air knife is designed with all-round protective lenses, which can be safer and more stable in complex working environments and better improve cleaning efficiency.

pulse cleaning system

Professionelle Programmier- und Verschachtelungssoftware

Supports 15 language switching and can be adapted to users from more countries. Barrier-free communication between humans and machines.

Cleaning product effect

Anwendung

  • Mold cleaning
  • Industrial rust removal, old paint and film removal
  • Pre-welding and post-welding treatment
  • Deesterification of precision parts
  • Decontamination and oxidation removal of electronic components
  • Cultural relic cleaning

How Much is pulse industries laser cost price

Der fiber laser cleaning machine price is generally around US$8,000-21,000. The higher the power, the higher the price. This is related to brand awareness, manufacturer’s configuration, power size, etc.

Contact us to get the latest pulsed laser cleaning machine prices and recommend a suitable pulse industries laser for you.

FAQ

For highly polluted surfaces:

The dirt, oxides and coatings, etc. on the surface of the object can be removed quickly by the pulse laser cleaning machine making it cleaner.

Pulsed lasers act with great energy in an instant which enable them to clean heavily contaminated surfaces faster.

For Precise Cleaning Surfaces:

Surface precision cleaning can be achieved through pulse laser cleaning machines that are capable of controlling the energy and time of laser output accurately.

Cleaner smoother surface help in promoting adhesion as well as quality of subsequent coating or surface treatment.

For Vulnerable Substrate Surfaces:

Short-term laser shock does not heat up the metal surface and does not affect the base material.

Substrate surfaces are better preserved by pulse laser cleaning machines than traditional chemical techniques used for removing small contaminants from such surfaces.

In general, pulse laser cleaning machines effectively and precisely remove pollutants on many intricate structural surfaces without harming substrates; they produce better results compared to traditional chemical approaches.

Steps for usage:
Observe the working status and cleaning effect of the laser beam, and adjust parameters or repair equipment in a timely manner.
It can be used with a robot to achieve automatic cleaning to obtain a more uniform cleaning effect.
Use a soft towel or brush to clean the radiator surface, do not use any organic

be careful:

Avoid irradiating the laser beam onto flammable objects to avoid fire hazards.
Choose appropriate laser parameters, such as pulse width, frequency, scanning speed, etc., to obtain the best cleaning effect.
In mold cleaning applications, pulsed laser cleaning machines generally provide better cleaning results, lower risk of thermal damage and higher precision control.
During the cleaning process, you need to pay attention to safety protection to avoid laser damage to the human body.

For highly polluted surfaces:

The dirt, oxides and coatings, etc. on the surface of the object can be removed quickly by the pulse laser cleaning machine making it cleaner.

Pulsed lasers act with great energy in an instant which enable them to clean heavily contaminated surfaces faster.

For Precise Cleaning Surfaces:

Surface precision cleaning can be achieved through pulse laser cleaning machines that are capable of controlling the energy and time of laser output accurately.

Cleaner smoother surface help in promoting adhesion as well as quality of subsequent coating or surface treatment.

For Vulnerable Substrate Surfaces:

Short-term laser shock does not heat up the metal surface and does not affect the base material.

Substrate surfaces are better preserved by pulse laser cleaning machines than traditional chemical techniques used for removing small contaminants from such surfaces.

In general, pulse laser cleaning machines effectively and precisely remove pollutants on many intricate structural surfaces without harming substrates; they produce better results compared to traditional chemical approaches.

The laser life of a pulsed laser cleaner is relatively short and requires more frequent replacement
The pulsed laser cleaner can provide a finer cleaning effect, and the surface after removing rust is smoother and cleaner
It is necessary to regularly check the working status of the laser and the heat dissipation system
Use a soft towel or brush to clean the radiator surface, do not use any organic solution

Avoid irradiating the laser beam into the human body to avoid damage to the eyes and skin
Personal protection is required during the cleaning process, such as wearing protective glasses, etc.
